  11. Plate Caster, 2" Wheel Dia., 75 lb., Black
Shop All Plate Casters
Zoro Select

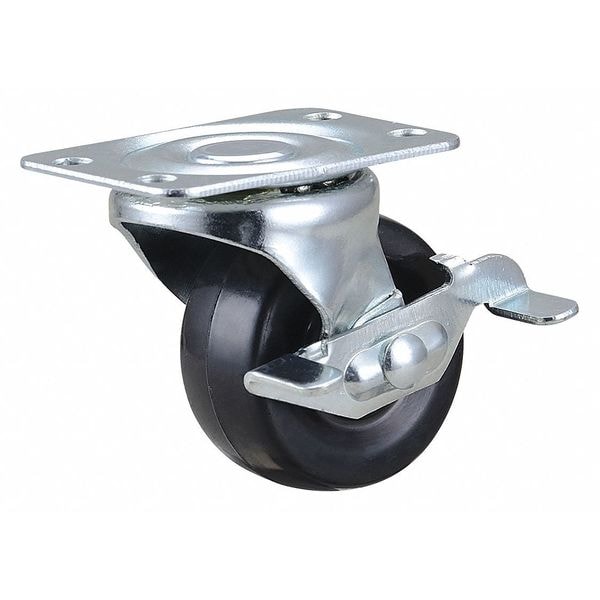

Plate Caster, 2" Wheel Dia., 75 lb., Black

product price: $2.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Rubber
See all product information

Product Information

Dimensions

Wheel Dia. 2 in
Wheel Width 7/8 in
Mounting Bolt Dia. 1/4 in
Overall Height 2-15/32"
Caster Plate Size 1-7/8" x 2-9/16"
Mounting Plate Size 1 7/8 in x 2 9/16 in
Mounting Height 2 7/16 in

Details

Caster Brake Included Yes
Caster Load Rating Range Light-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Rubber
Load Rating 75 lb
Number of Wheels 1
Caster Brake Type Side Pedal Brake
Durometer 70 Shore D
Caster Product Group Swivel Caster with Brake
Standards ANSI/ICWM
Caster Frame Material Steel
Inside Bolt Hole Spacing 15/16 in x 2-1/8 in
Frame Finish Zinc Plated
Item Standard Plate Caster
Caster Temp. Range Available No
Caster Max. Temp. 155 Degrees F
Thread Guards No
Non-Marking No
Caster Swivel Lock Type No Lock Included
Caster Wheel Bearings Plain
Caster Plate Thickness 5/64"
Caster Raceway Single Ball
Application General Purpose
Extended Lead No
Caster Min. Temp. -40 Degrees F
Core Color Black
Caster Plate Hole Pattern D
Plate Caster Bolt Hole Pattern D
Outside Bolt Hole Spacing 15/16 in x 2-1/8 in
Caster Core Material Rubber
Wheel Color Black
Wheel Core Material Rubber
Number of Mounting Holes 4
Swivel Lock Type No Lock Included
Load Rating Range 0 to 299 lb
Includes Thread Guards No
Tread Shape Standard
Swivel Raceway Type Single Ball
Mounting Plate Bolt Hole Pattern D
Wheel/Tread Hardness Rating Hard
Swivel Construction Kingpin
Wheel Bearing Type Plain
Wheel/Tread Hardness 70 Shore D
Wheel/Tread Material Rubber
Wheel/Tread Color Black

Description

Swivel, Standard Plate Caster, Load Rating 75 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 7/8 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type Side Pedal Brake, Tread Shape Standard
