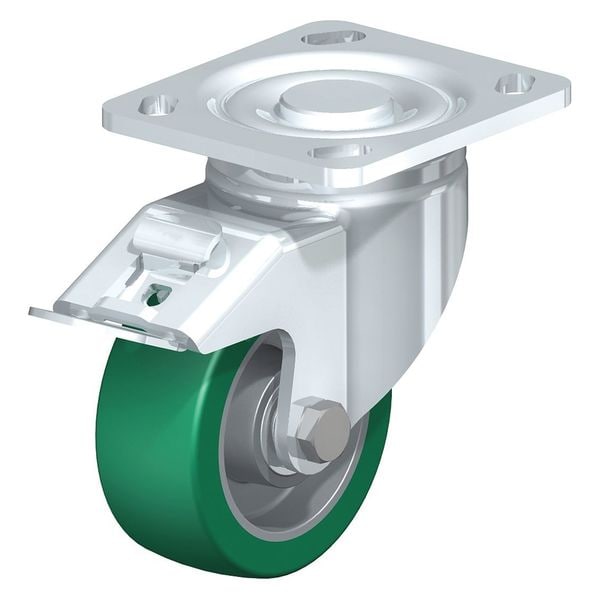

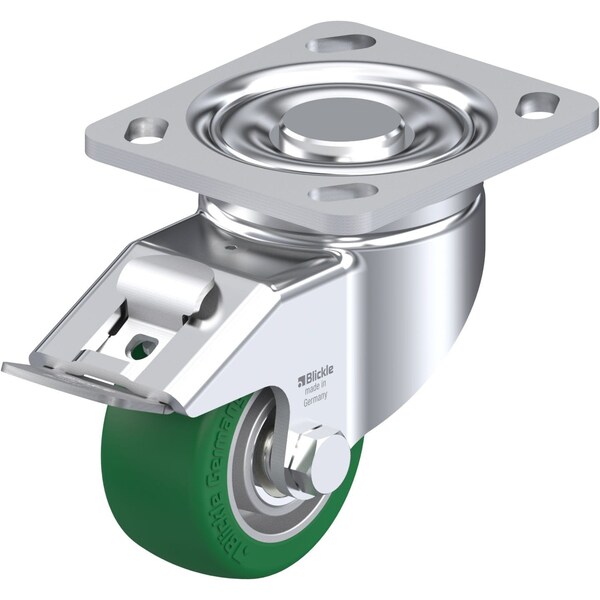

Blickle Swivel Plate Caster, PU, 3-1/8", Brake LH-ALST 82K-14-FI - main

Swivel Plate Caster, PU, 3-1/8", Brake

  • Mfr # LH-ALST 82K-14-FI

  • Zoro # G0894649

product price:  $126.99
/ea
Free Shipping & Returns

Key Features

Number of Wheels
1
Wheel Dia.
3-1/8in
Stem Dia.
No Stem
Wheel Width
1-9/16in
Caster Stem Type
No Stem/Plate Included
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LH-ALST 82K-14-FI
Zoro #
G0894649
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3-1/8in
Stem Dia.
No Stem
Wheel Width
1-9/16in
Overall Height
4.72in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-5/16 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Number of Wheels
1
Item
Swivel Caster With Brake
Caster Stem Type
No Stem/Plate Included
Load Rating
505 lb.
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
3 in x 3 in
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
System of Measurement
Inch
Includes
Stop-Fix Total-Lock Brake
Caster Brake Type
Stop Fix Brake (Total Lock)
Core Color
Silver
Replacement Wheel
Mfr. No. ALST 82/15K
Caster Mounting Type
Plate
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread Color
Green
Frame Finish
Zinc Plated
Tread
Standard
Non-Marking
Yes
Extended Lead
No
Caster Frame Material
Steel
ESD Conductive
No
Includes Thread Guards
No
Series
LH Series
Number of Mounting Holes
4
Load Capacity
505 lb
Load Rating Range
Heavy-Duty
Wheel Core Material
Aluminum
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: RI-04.14 (Directional Lock)
Wheel Hardness Rating
75 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Plate Caster
