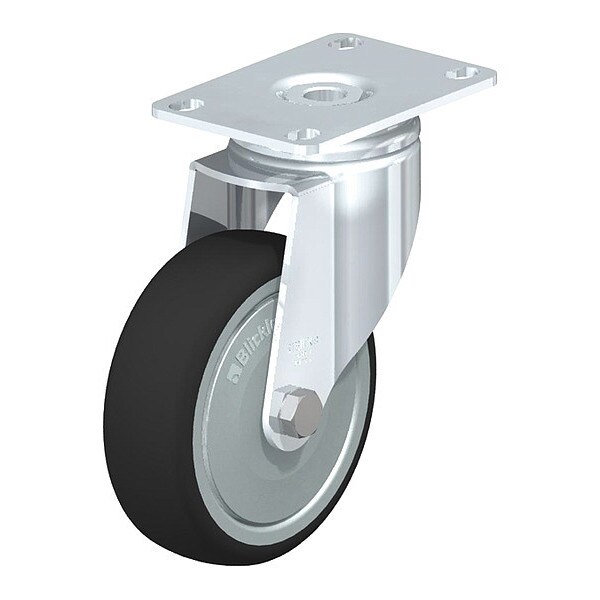

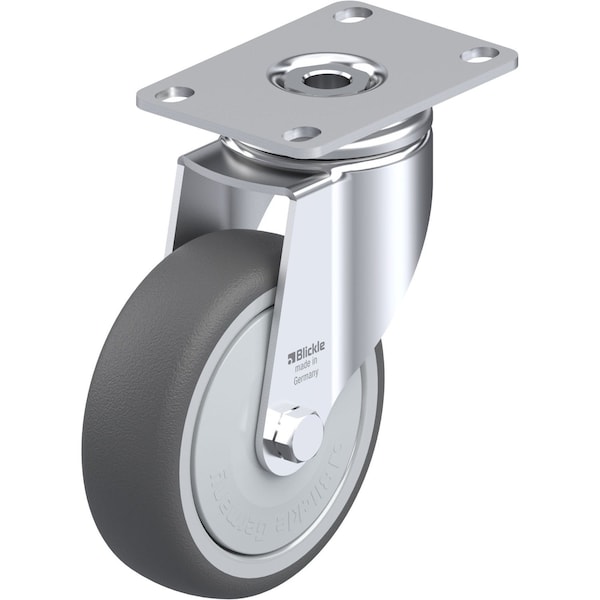

Blickle Swivel Plate Caster, PU, 4", 240 lb., Caster Wheel/Tread Material: Nylon/Thermoplastic Polyurethane LKPA-PATH 101KF-12 - main

Swivel Plate Caster, PU, 4", 240 lb., Caster Wheel/Tread Material: Nylon/Thermoplastic Polyurethane

  • Mfr # LKPA-PATH 101KF-12

  • Zoro # G0889487

product price:  $27.39
/ea

Key Features

Caster Brake Included
No
Stem Dia.
No Stem
Load Rating
240 lb.
Wheel Dia.
4in
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LKPA-PATH 101KF-12
Zoro #
G0889487
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Dia.
4in
Overall Height
5-3/8in
Wheel Width
1-1/4in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-9/16 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.118 in

Details

Caster Brake Included
No
Item
Swivel Caster
Load Rating
240 lb.
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Core Color
Gray
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Standards
RoHS, ICWM, NSF
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Tread Color
Dark Gray
Caster Brake Type
No Brake Included
Frame Finish
Zinc Plated
System of Measurement
Inch
Replacement Wheel
Mfr. No. PATH 101/8K-FK
Tread
Standard
Caster Mounting Type
Plate
Caster Frame Material
Steel
Extended Lead
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Includes Thread Guards
Yes
Number of Mounting Holes
4
Series
LKPA Series
ESD Conductive
No
Load Capacity
265 lb
Load Rating Range
Light-Duty
Wheel Core Material
Nylon
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Wheel Hardness Rating
94 Shore A
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
