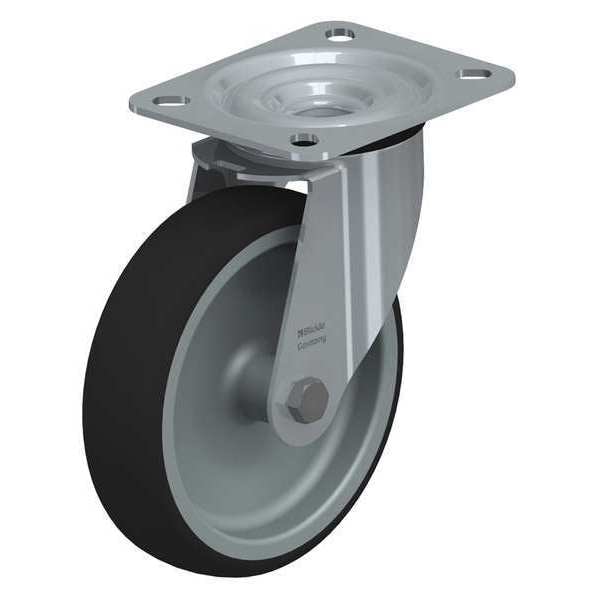

Blickle Swivl Plte Cstr, Polyurthane, 5", 330 lb. LE-PATH 125G - main

Swivl Plte Cstr, Polyurthane, 5", 330 lb.

  • Mfr # LE-PATH 125G

  • Zoro # G9661806

product price:  $26.85
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Wheel Width
32 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LE-PATH 125G
Zoro #
G9661806
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Wheel Dia.
125 m
Swivel Radius
102.5 mm
Overall Height
150 mm

Details

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Wheel Bearing Type
Plain
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Item
Swivel Caster
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Included
No
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. PATH 125/12G
Extended Lead
No
Tread
Standard
Tread Shape
Standard
ESD Conductive
No
Caster Mounting Type
Plate
Load Capacity
150 kg
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Tread Color
Dark Gray
Swivel Raceway Type
Double Ball
Accessories
Optional: RI-04.14 (Directional Lock)
Load Rating Range
Medium Duty
Wheel Core Material
Nylon
Includes Thread Guards
No
Series
LE Series
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel
