  6. Swivel Plate Caster, PU, 4", 600 lb.

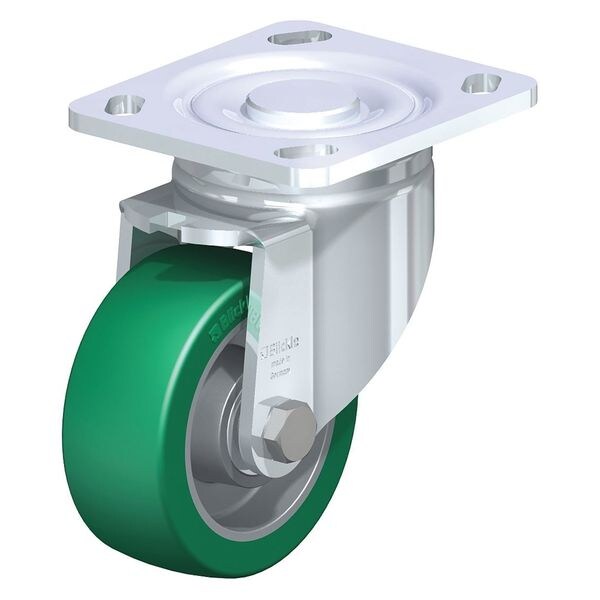

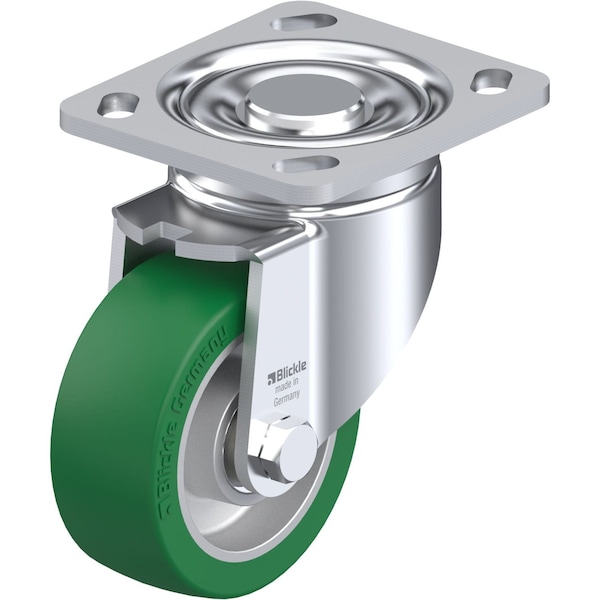

Blickle Swivel Plate Caster, PU, 4", 600 lb. LH-ALST 100K-14 - main

Swivel Plate Caster, PU, 4", 600 lb.

  • Mfr # LH-ALST 100K-14

  • Zoro # G0894798

product price:  $94.65
/ea
Free Shipping & Returns

Key Features

Load Rating
600 lb.
Wheel Dia.
4in
Caster Sub-Type
Swivel
Overall Height
5.51in
Wheel Width
1-9/16in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LH-ALST 100K-14
Zoro #
G0894798
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4in
Overall Height
5.51in
Wheel Width
1-9/16in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/4 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in

Details

Load Rating
600 lb.
Caster Sub-Type
Swivel
Number of Wheels
1
Caster Brake Included
No
Item
Swivel Caster
Caster Stem Type
No Stem/Plate Included
Caster Brake Type
No Brake Included
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Mounting Type
Plate
Tread
Standard
Replacement Wheel
Mfr. No. ALST 100/15K
Frame Finish
Zinc Plated
Tread Color
Green
System of Measurement
Inch
Non-Marking
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Core Color
Silver
Caster Frame Material
Steel
Extended Lead
No
Series
LH Series
ESD Conductive
No
Load Capacity
660 lb
Swivel Raceway Type
Double Ball
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Shape
Standard
Wheel Core Material
Aluminum
Load Rating Range
Heavy-Duty
Includes Thread Guards
No
Number of Mounting Holes
4
Accessories
Optional: RI-04.14 (Directional Lock)
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Hardness Rating
75 Shore A
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
