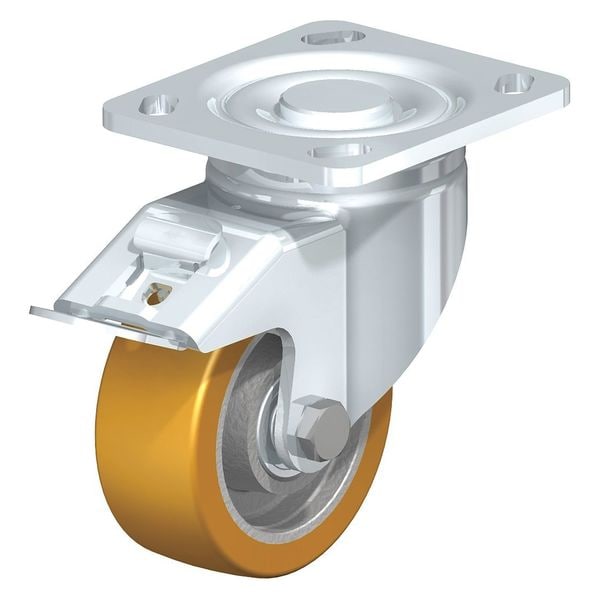

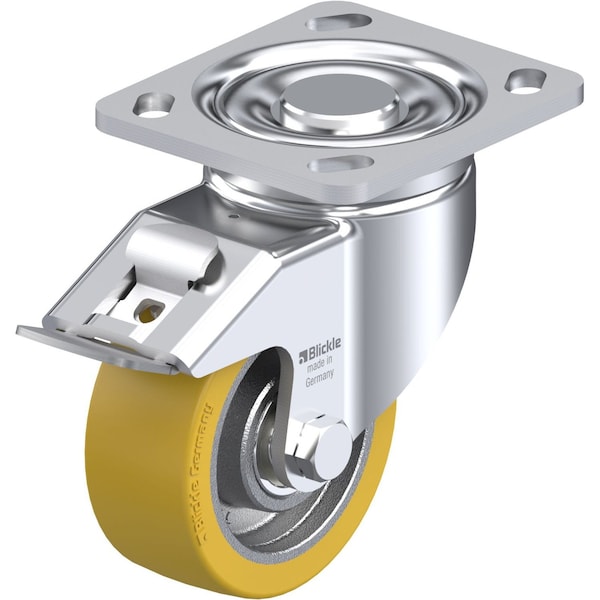

Blickle Swivel Plate Caster, PU, 4", Brake, Caster Wheel/Tread Material: Cast Iron/Polyurethane Elastomer LH-GTH 100K-14-FI - main

Swivel Plate Caster, PU, 4", Brake, Caster Wheel/Tread Material: Cast Iron/Polyurethane Elastomer

  • Mfr # LH-GTH 100K-14-FI

  • Zoro # G0894341

product price:  $123.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Stem Dia.
No Stem
Caster Sub-Type
Swivel
Load Rating
880 lb.
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-GTH 100K-14-FI
Zoro #
G0894341
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
5.51in
Wheel Dia.
4in
Wheel Width
1-9/16in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Load Rating
880 lb.
Number of Wheels
1
Item
Swivel Caster With Brake
Replacement Wheel
Mfr. No. GTH 100/15K
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Zinc Plated
Includes
Stop-Fix Total-Lock Brake
Non-Marking
Yes
Caster Mounting Type
Plate
Inside Bolt Hole Spacing
3 in x 3 in
Core Color
Gray
Tread
Standard
Caster Brake Type
Stop Fix Brake (Total Lock)
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
System of Measurement
Inch
Tread Color
Light Brown
Standards
RoHS, ICWM
Extended Lead
No
Caster Frame Material
Steel
Tread Shape
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Heavy-Duty
Number of Mounting Holes
4
ESD Conductive
No
Wheel Core Material
Cast Iron
Load Capacity
880 lb
Series
LH Series
Swivel Raceway Type
Double Ball
Accessories
Optional: RI-04.14 (Directional Lock)
Includes Thread Guards
No
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
