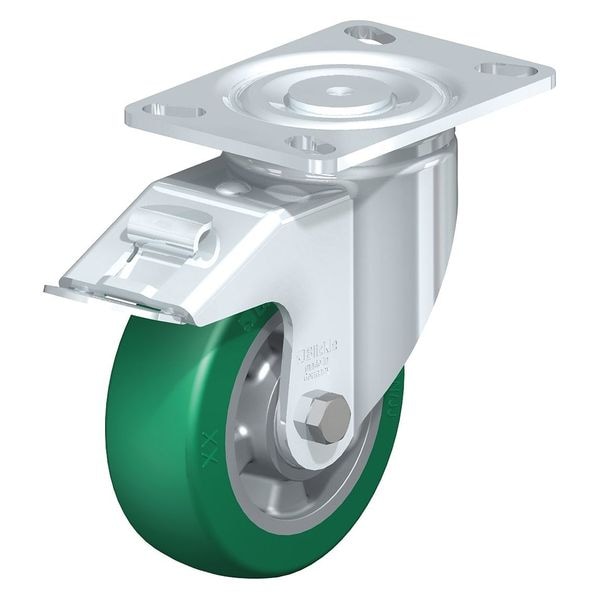

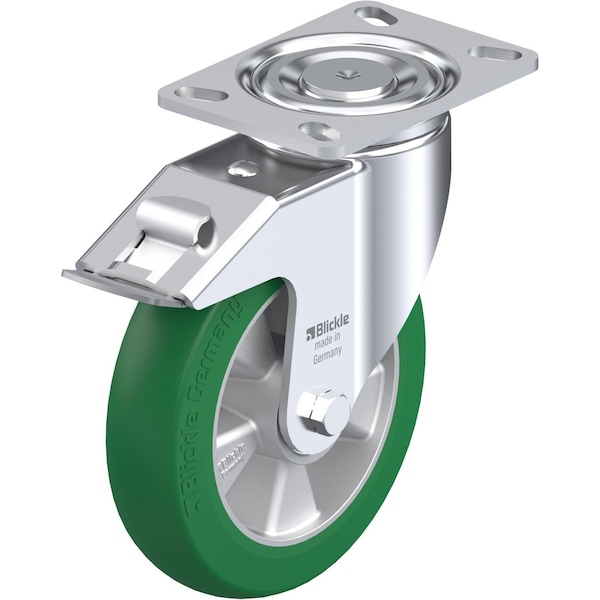

Blickle Swivel Plate Caster, PU, 8", Brake LH-ALST 200K-16-FI-CO - main

Swivel Plate Caster, PU, 8", Brake

  • Mfr # LH-ALST 200K-16-FI-CO

  • Zoro # G0894962

product price:  $197.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel Width
2in
Caster Stem Type
No Stem/Plate Included
Stem Dia.
No Stem
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-ALST 200K-16-FI-CO
Zoro #
G0894962
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Stem Dia.
No Stem
Overall Height
9.65in
Wheel Dia.
8in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-3/4 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in

Details

Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster With Brake
Number of Wheels
1
Load Rating
1540 lb.
Caster Brake Included
Yes
Replacement Wheel
Mfr. No. ALST 200/20K-CO
Core Color
Silver
Caster Brake Type
Stop Fix Brake (Total Lock)
Non-Marking
Yes
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Tread Color
Green
Tread
Crowned
Caster Mounting Type
Plate
Includes
Stop-Fix Total-Lock Brake, Extra Crowned Tread
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
System of Measurement
Inch
Caster Frame Material
Steel
Extended Lead
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LH Series
ESD Conductive
No
Load Rating Range
Heavy-Duty
Number of Mounting Holes
4
Tread Shape
Extra Crowned
Accessories
Optional: RI-05.16 (Directional Lock)
Load Capacity
1540 lb
Wheel Core Material
Aluminum
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Hardness Rating
75 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
