  6. Swivel Plate Caster, PU, 4", Brake, Caster Wheel/Tread Material: Nylon/Thermoplastic Polyurethane

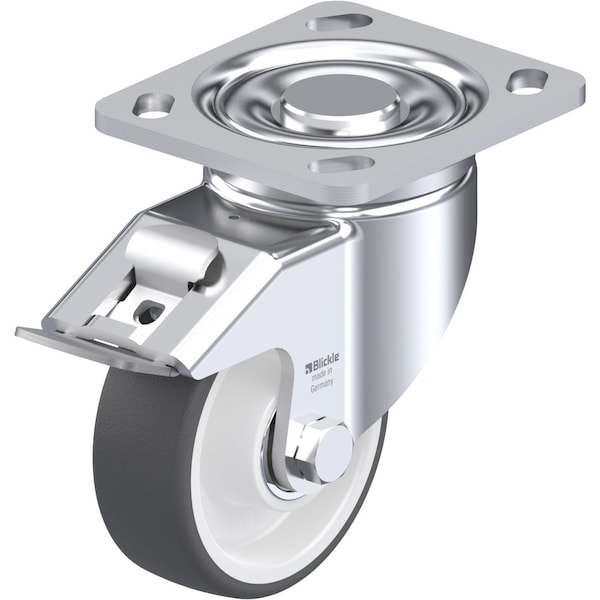

Blickle Swivel Plate Caster, PU, 4", Brake, Caster Wheel/Tread Material: Nylon/Thermoplastic Polyurethane LH-POTH 100K-14-FI - main

Swivel Plate Caster, PU, 4", Brake, Caster Wheel/Tread Material: Nylon/Thermoplastic Polyurethane

  • Mfr # LH-POTH 100K-14-FI

  • Zoro # G0894113

product price:  $98.75
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Stem Dia.
No Stem
Caster Stem Type
No Stem/Plate Included
Wheel Width
1-3/8in
Wheel Dia.
4in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LH-POTH 100K-14-FI
Zoro #
G0894113
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Width
1-3/8in
Wheel Dia.
4in
Overall Height
5.51in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Load Rating
660 lb.
Caster Brake Included
Yes
Item
Swivel Caster With Brake
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Type
Stop Fix Brake (Total Lock)
Replacement Wheel
Mfr. No. POTH 100/15K
Non-Marking
Yes
Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread Color
Gray
Core Color
White
Tread
Standard
Includes
Stop-Fix Total-Lock Brake
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
System of Measurement
Inch
Standards
RoHS, ICWM
Caster Mounting Type
Plate
Extended Lead
No
Caster Frame Material
Steel
Wheel Core Material
Nylon
Number of Mounting Holes
4
Tread Shape
Standard
Series
LH Series
Includes Thread Guards
No
Accessories
Optional: RI-04.14 (Directional Lock)
Swivel Raceway Type
Double Ball
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Rating Range
Heavy-Duty
Load Capacity
660 lb
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
