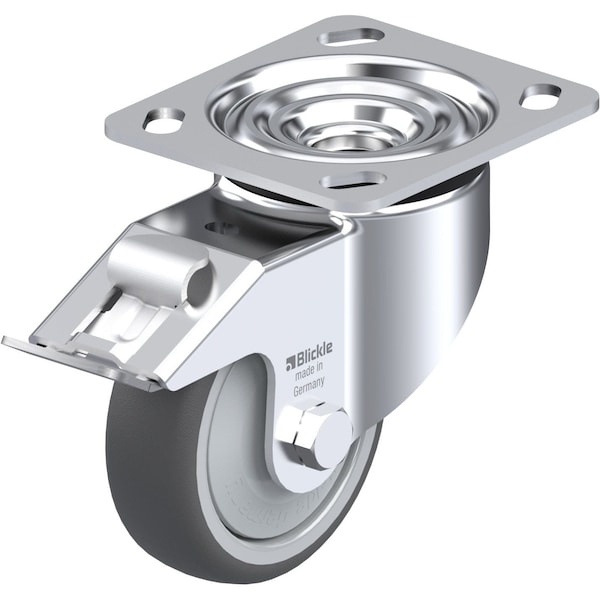

Blickle Swivel Plate Caster, PU, 4", Brake, Number of Wheels: 1 LK-PATH 100KF-14-FI - main

Swivel Plate Caster, PU, 4", Brake, Number of Wheels: 1

  • Mfr # LK-PATH 100KF-14-FI

  • Zoro # G0891718

product price:  $40.89
/ea

Key Features

Caster Stem Type
No Stem/Plate Included
Stem Dia.
No Stem
Caster Sub-Type
Swivel
Number of Wheels
1
Wheel Dia.
4in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LK-PATH 100KF-14-FI
Zoro #
G0891718
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Dia.
4in
Wheel Width
1-1/4in
Overall Height
5.12in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/4 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in

Details

Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Number of Wheels
1
Load Rating
440 lb.
Item
Swivel Caster With Brake
Caster Brake Included
Yes
Core Color
Gray
Includes
Stop-Fix Total-Lock Brake
Tread
Standard
Caster Brake Type
Stop Fix Brake (Total Lock)
Frame Finish
Zinc Plated
Tread Color
Dark Gray
Standards
RoHS, ICWM
System of Measurement
Inch
Replacement Wheel
Mfr. No. PATH 100/10K-FK
Non-Marking
Yes
Caster Mounting Type
Plate
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Extended Lead
No
Caster Frame Material
Steel
Tread Shape
Standard
Wheel Core Material
Nylon
Load Rating Range
Medium Duty
Includes Thread Guards
Yes
ESD Conductive
No
Series
LK Series
Load Capacity
440 lb
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
