Shop All Plate Casters
Blickle

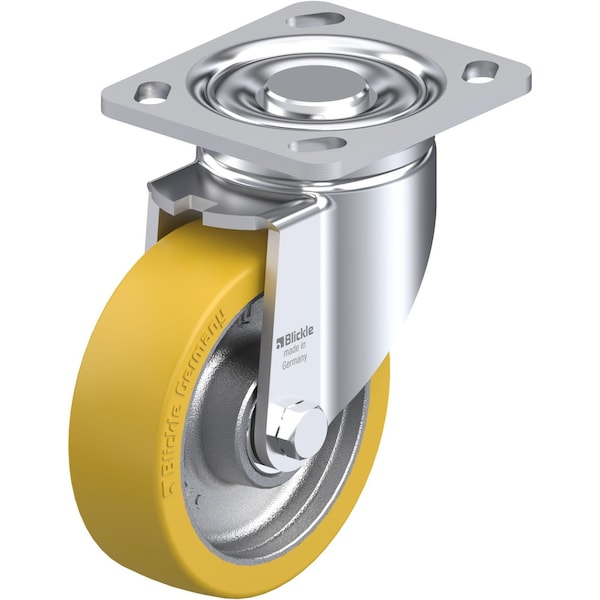

Swivel Plate Caster, PU, 5", 1100 lb., Caster Load Rating Range: Heavy-Duty

product price: $100.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Heavy Duty
  • Caster Sub-Type Swivel
  • Caster Wheel/Tread Material Extrathane Polyurethane
  • Load Rating 1100 lb.
See all product information

Product Information

Dimensions

Overall Height 6-1/2 in
Wheel Dia. 5 in
Wheel Width 1-9/16 in
Stem Dia. No Stem
Mounting Bolt Dia. 3/8 in
Swivel Radius 4-1/4 in
Caster Plate Size 4 in x 4-1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Heavy Duty
Caster Sub-Type Swivel
Caster Wheel/Tread Material Extrathane Polyurethane
Load Rating 1100 lb.
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Item Swivel Plate Caster
Caster Temp. Range -15 Degrees To 160 Degrees F
Application Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
System of Measurement Inch
Standards RoHS, ICWM
Non-Marking Yes
Core Color Gray
Frame Finish Zinc Plated
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing 3 in x 3 in
Tread Standard
Tread Color Light Brown
Caster Mounting Type Plate
Caster Raceway Double Ball
Caster Wheel Bearings Precision Ball
Replacement Wheel Mfr. No. GTH 125/15K
Caster Product Group Swivel Caster
Caster Frame Material Steel
Caster Swivel Lock Type No Lock Included
Extended Lead No
Caster Plate Thickness 0.236 in
Wheel Core Material Cast Iron
Load Capacity 1100 lb
Number of Mounting Holes 4
Includes Thread Guards No
Resistant To High Chemical Resistance To Many Aggressive Substances
Wheel/Tread Hardness 92 Shore A
Swivel Raceway Type Double Ball
Tread Shape Standard
ESD Conductive No
Accessories Optional: RI-04.14 (Directional Lock)
Series LH Series
Caster Break Type No Brake Included

Description

Swivel
