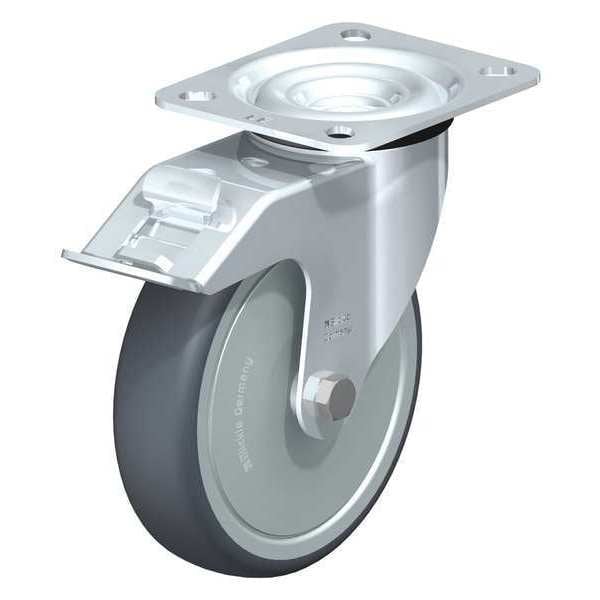

Swivel Plate Cstr, TPR Rubber, 5", Brake

Name: Swivel Plate Cstr, TPR Rubber, 5", Brake
Brand: Blickle
SKU: G9662311
Price: 44.59 USD
Availability: InStock

44.59

/ea

Caster Sub-Type

Swivel

System of Measurement

Metric

Wheel/Tread Material

Thermoplastic Rubber

Caster Brake Type

Stop Fix Brake (Total Lock)

Wheel Dia.

125 mm

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Caster Sub-Type: Swivel
System of Measurement: Metric
Wheel/Tread Material: Thermoplastic Rubber
Caster Brake Type: Stop Fix Brake (Total Lock)
Caster Mounting Type: Plate
Wheel Bearing Type: Precision Ball
Number of Mounting Holes: 4
Tread Shape: Standard
Caster Frame Material: Steel
Non-Marking: Yes
Number of Wheels: 1
Inside Bolt Hole Spacing: 60 mm x 80 mm
Item: Swivel With Brake
Extended Lead: No
Outside Bolt Hole Spacing: 60 mm x 80 mm
Frame Finish: Zinc Plated
Includes: Stop-Fix Total-Lock Brake
Caster Brake Included: Yes
Core Color: Gray
Replacement Wheel: Mfr. No. TPA 127/8K-FK
Standards: ICWM
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Includes Thread Guards: Yes
Tread: Standard
Load Capacity: 125 kg
ESD Conductive: No
Tread Color: Gray
Wheel Core Material: Polypropylene
Accessories: Optional: RI-04.14 (Directional Lock)
Resistant To: Very High Chemical Resistance To Many Aggressive Substances
Load Rating Range: Medium Duty
Series: LE Series
Swivel Raceway Type: Double Ball
Wheel Hardness Rating: 85 Shore A
Operating Temperature Range: -20 Degrees To 60 Degrees C

Swivel With Brake
