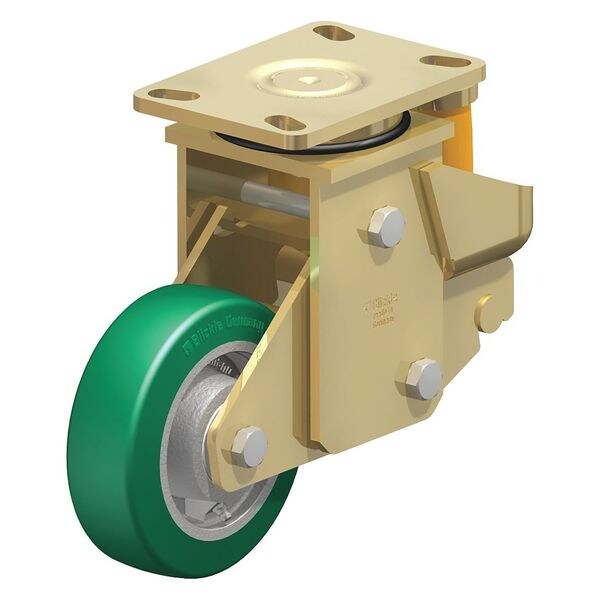

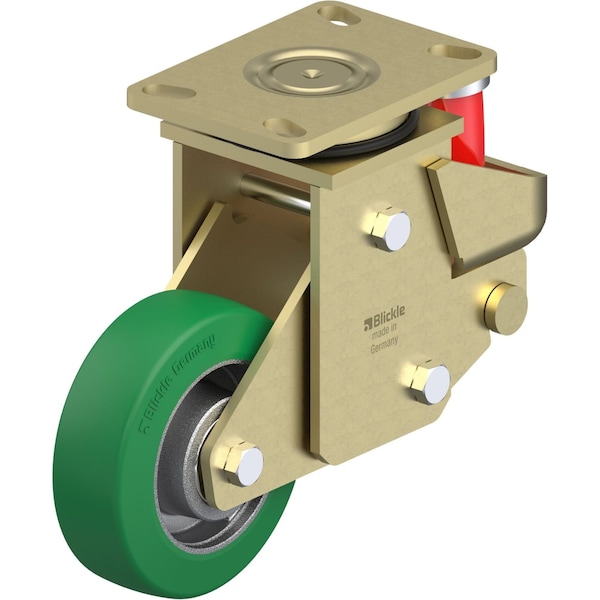

Blickle Swivel Plate Caster, PU, 6", 1320 lb. LSFE-GST 150K-16 - main

Swivel Plate Caster, PU, 6", 1320 lb.

  • Mfr # LSFE-GST 150K-16

  • Zoro # G0895872

product price:  $383.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
2in
Overall Height
9-5/8in
Load Rating
1,320 lb
Caster Stem Type
No Stem/Plate Included
Stem Dia.
No Stem
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LSFE-GST 150K-16
Zoro #
G0895872
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Overall Height
9-5/8in
Stem Dia.
No Stem
Wheel Dia.
6in
Mounting Bolt Dia.
1/2 in
Swivel Radius
7 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Load Rating
1,320 lb
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Caster Brake Included
No
Item
Swivel Caster
Number of Wheels
1
Frame Finish
Zinc Plated, Yellow Passivated
Replacement Wheel
Mfr. No. GST 150/20K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Brake Type
No Brake Included
Tread
Standard
Standards
RoHS, ICWM
System of Measurement
Inch
Core Color
Gray
Tread Color
Green
Non-Marking
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Mounting Type
Plate
Caster Frame Material
Steel
Extended Lead
No
Series
LSFE Series
Includes Thread Guards
No
ESD Conductive
No
Load Rating Range
Heavy-Duty
Tread Shape
Standard
Wheel Core Material
Cast Iron
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Max. Spring Deflection
1 in
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
610 lb
Number of Mounting Holes
4
Wheel Hardness Rating
75 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F
Maximum Compression Force
1100 lb

Description

Swivel
