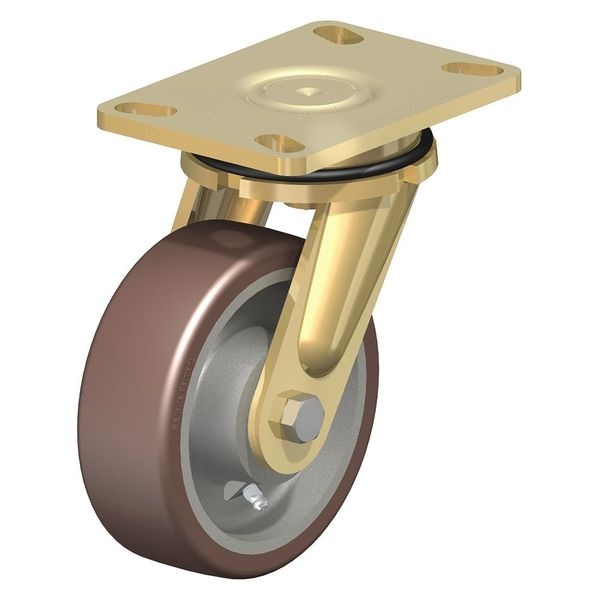

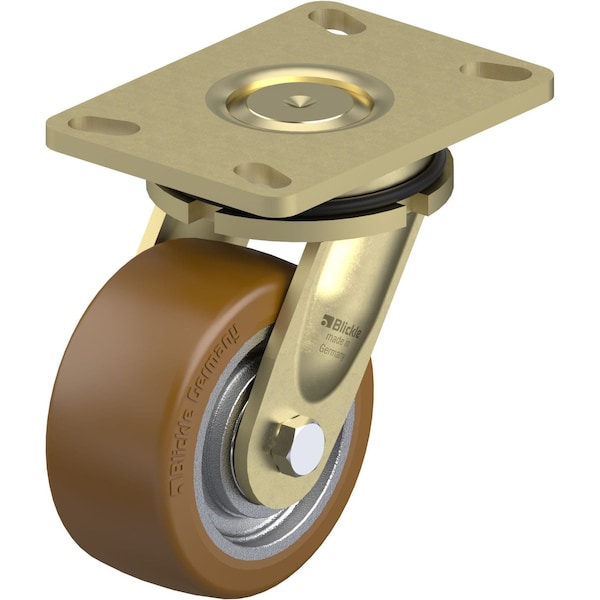

Blickle Swivel Plate Caster, PU, 5", 1540 lb. LS-GB 128K-16 - main

Swivel Plate Caster, PU, 5", 1540 lb.

  • Mfr # LS-GB 128K-16

  • Zoro # G0895671

product price:  $228.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Included
No
Number of Wheels
1
Caster Sub-Type
Swivel
Stem Dia.
No Stem
Wheel Dia.
5in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LS-GB 128K-16
Zoro #
G0895671
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Dia.
5in
Wheel Width
2-3/8in
Overall Height
6.69in
Mounting Bolt Dia.
1/2 in
Swivel Radius
4-1/2 in
Mounting Plate Thickness
0.315 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Caster Brake Included
No
Item
Swivel Caster
Number of Wheels
1
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Load Rating
1,540 lb
Tread
Standard
Core Color
Gray
Tread Color
Brown
System of Measurement
Inch
Non-Marking
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Frame Finish
Zinc Plated, Yellow Passivated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Replacement Wheel
Mfr. No. GB 128/20K
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Extended Lead
No
Caster Frame Material
Steel
Load Rating Range
Heavy-Duty
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: RI-LS-16 (Directional Lock)
Wheel Core Material
Cast Iron
Tread Shape
Standard
Number of Mounting Holes
4
Series
LS Series
Load Capacity
1540 lb
ESD Conductive
No
Includes Thread Guards
No
Wheel/Tread Material
Cast Iron/Polyurethane
Wheel Hardness Rating
92 Shore A
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
