  6. Swivel Plate Caster, PU, 5", 265 lb., Number of Wheels: 1

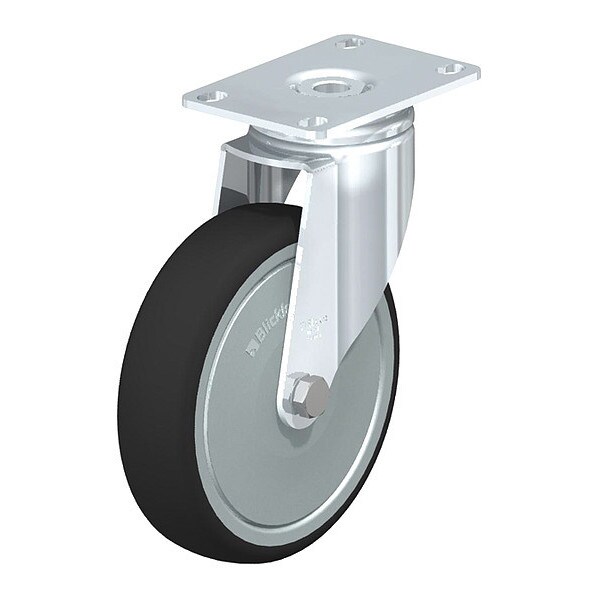

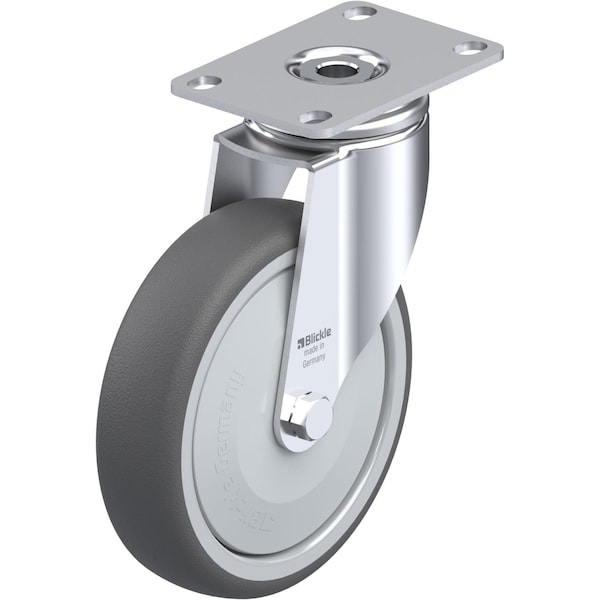

Blickle Swivel Plate Caster, PU, 5", 265 lb., Number of Wheels: 1 LKPA-PATH 126KF-12 - main

Swivel Plate Caster, PU, 5", 265 lb., Number of Wheels: 1

  • Mfr # LKPA-PATH 126KF-12

  • Zoro # G0889450

product price:  $27.59
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Wheel Dia.
5in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LKPA-PATH 126KF-12
Zoro #
G0889450
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.118 in
Mounting Bolt Dia.
5/16 in
Overall Height
6-5/16in
Wheel Width
1-1/4in
Stem Dia.
No Stem
Swivel Radius
4-1/16 in

Details

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Caster Brake Type
No Brake Included
Load Rating
265 lb.
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster
Core Color
Gray
Replacement Wheel
Mfr. No. PATH 126/8K-FK
Tread Color
Dark Gray
Caster Mounting Type
Plate
Frame Finish
Zinc Plated
Standards
RoHS, ICWM, NSF
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread
Standard
Extended Lead
No
Load Capacity
265 lb
Includes Thread Guards
Yes
ESD Conductive
No
Series
LKPA Series
Swivel Raceway Type
Double Ball
Wheel Core Material
Nylon
Load Rating Range
Light-Duty
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
