  6. Swivl Plate Caster, Cast Iron, 4 in, 700 lb
Zoro Select Swivl Plate Caster, Cast Iron, 4 in, 700 lb 1NWH9 - main

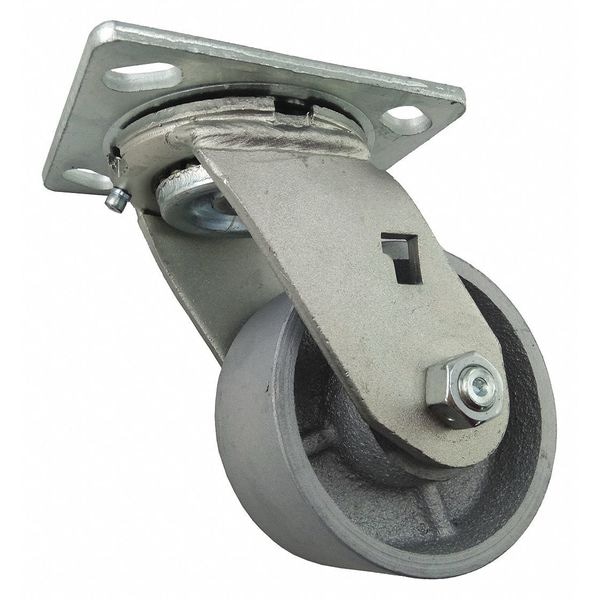

Swivl Plate Caster, Cast Iron, 4 in, 700 lb

  • Mfr # 1NWH9

  • Zoro # G1597994

product price:  $29.15
/ea

Key Features

Overall Height
5-5/8in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Temp. Range Available
No
Caster Plate Hole Pattern
B
Caster Brake Included
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1NWH9
Zoro #
G1597994
UPC #
190735406304
Country of Origin
China

Dimensions

Overall Height
5-5/8in
Wheel Dia.
4 in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in

Details

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Temp. Range Available
No
Caster Plate Hole Pattern
B
Caster Brake Included
No
Item
Plate Caster
Inside Bolt Hole Spacing
3 in x 3 in
Caster Stem Type
No Stem/Plate Included
Thread Guards
No
Includes
Spanner Bushing
Load Rating
700 lb
Wheel Color
Gray
Caster Sub-Type
Swivel
Caster Frame Material
Steel
Number of Wheels
1
Core Color
Gray
Frame Finish
Zinc Plated
Standards
ANSI ICWM
Caster Brake Type
No Brake
System of Measurement
Inch
Non-Marking
Yes
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Wheel/Tread Material
Iron
Wheel Core Material
Iron
Tread Shape
Standard
Swivel Construction
Kingpin
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Load Rating Range
300 to 999 lb
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Gray
Load Capacity - Maximum
700 lb

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
