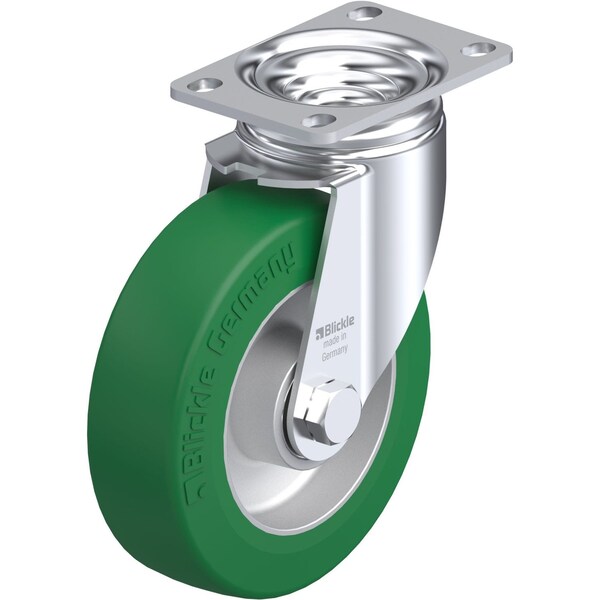

Swivel Plate Caster, PU, 5", 400 lb.

  • Mfr # L-ALST 125K-12
  • Zoro # G0890887
product price:
$
68.69
/ea

Key Features

Stem Dia.
No Stem
Number of Wheels
1
Caster Brake Included
No
Caster Sub-Type
Swivel
Overall Height
6.1in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-ALST 125K-12
Zoro #
G0890887
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
6.1in
Wheel Width
1-9/16in
Wheel Dia.
5in
Mounting Bolt Dia.
5/16 in
Swivel Radius
4 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.118 in

Details

Number of Wheels
1
Caster Brake Included
No
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Item
Plate Caster
Load Rating
400 lb
Caster Mounting Type
Plate
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Tread
Standard
Replacement Wheel
Mfr. No. ALST 125/15K
System of Measurement
Inch
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread Color
Green
Core Color
Silver
Non-Marking
Yes
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Brake Type
No Brake Included
Caster Frame Material
Steel
Extended Lead
No
Number of Mounting Holes
4
Load Capacity
400 lb
Load Rating Range
Heavy-Duty
Wheel Core Material
Aluminum
Series
L Series
Accessories
Optional: RI-03.12 (Directional Lock)
Includes Thread Guards
No
Tread Shape
Standard
Swivel Raceway Type
Double Ball
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
75 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F
Load Capacity - Maximum
550 lb

Description

Plate Caster
