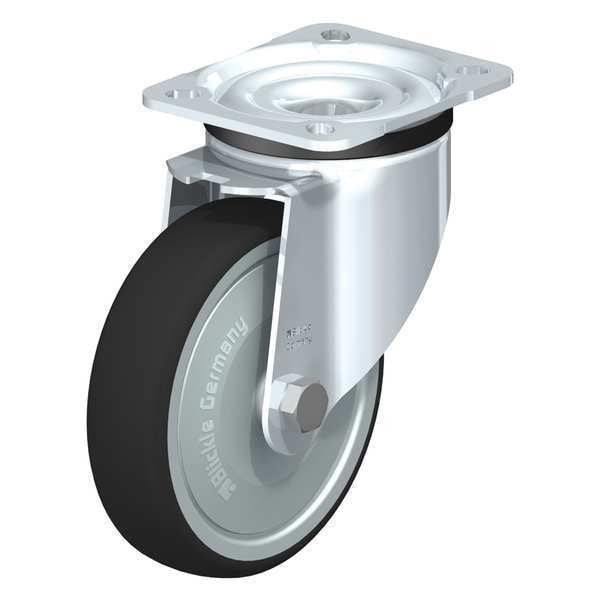

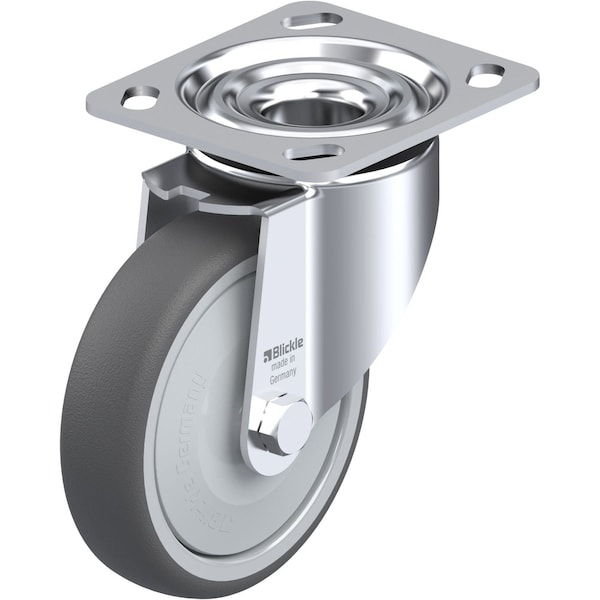

Blickle Swivel Plate Caster, PU, 5", 550 lb. LK-PATH 125KF-14 - main

Swivel Plate Caster, PU, 5", 550 lb.

  • Mfr # LK-PATH 125KF-14

  • Zoro # G0891760

product price:  $35.49
/ea

Key Features

Wheel Width
1-1/4in
Wheel Dia.
5in
Caster Sub-Type
Swivel
Caster Brake Included
No
Stem Dia.
No Stem
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LK-PATH 125KF-14
Zoro #
G0891760
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1-1/4in
Wheel Dia.
5in
Stem Dia.
No Stem
Overall Height
6.1in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-3/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in

Details

Caster Sub-Type
Swivel
Caster Brake Included
No
Load Rating
550 lb.
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster
Number of Wheels
1
Inside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Zinc Plated
Core Color
Gray
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. PATH 125/10K-FK
Non-Marking
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread Color
Dark Gray
Caster Mounting Type
Plate
System of Measurement
Inch
Caster Brake Type
No Brake Included
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread
Standard
Caster Frame Material
Steel
Extended Lead
No
Swivel Raceway Type
Double Ball
Wheel Core Material
Nylon
Includes Thread Guards
Yes
ESD Conductive
No
Tread Shape
Standard
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes
4
Series
LK Series
Load Rating Range
Medium Duty
Load Capacity
550 lb
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Wheel Hardness Rating
94 Shore A
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Plate Caster
