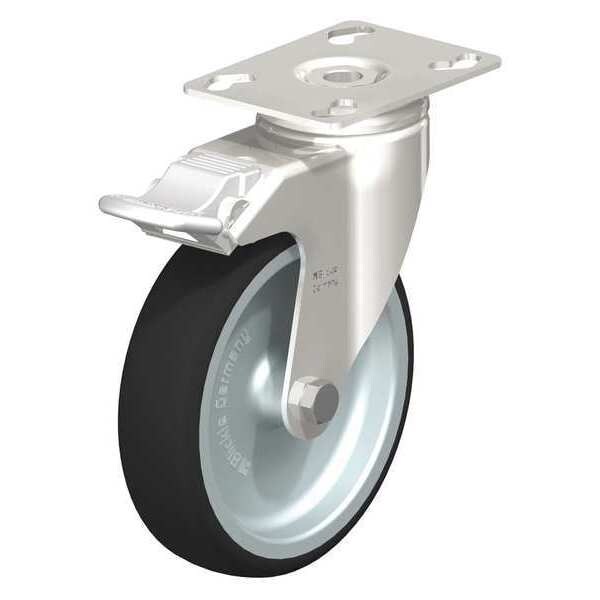

Blickle Swvl Plate Cstr, Plyurthane, 5", Brake LKPXA-PATH 126G-FI - main

Swvl Plate Cstr, Plyurthane, 5", Brake

  • Mfr # LKPXA-PATH 126G-FI

  • Zoro # G9660117

product price:  $72.15
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Wheel Width
32 mm
Caster Mounting Type
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKPXA-PATH 126G-FI
Zoro #
G9660117
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
125 mm
Wheel Width
32 mm
Mounting Plate Size
66 mm x 90 mm
Mounting Plate Thickness
2.25 mm
Mounting Bolt Dia.
M8
Swivel Radius
102.5 mm
Overall Height
161 mm

Details

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Polyurethane
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Outside Bolt Hole Spacing
45 mm x 75 mm
Inside Bolt Hole Spacing
51 mm x 61 mm
Item
Swivel Caster With Brake
Standards
RoHS, ICWM, NSF
Frame Finish
Stainless Steel
Extended Lead
No
Caster Brake Type
Stop Fix Brake (Total Lock)
Replacement Wheel
Mfr. No. PATH 126/12G
Caster Brake Included
Yes
Number of Wheels
1
Includes
Stop-Fix Total-Lock Brake
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Load Rating Range
Medium Duty
Tread
Standard
Load Capacity
120 kg
Number of Mounting Holes
4
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Wheel Core Material
Nylon
Series
LKPXA Series
Tread Color
Dark Gray
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel With Brake
