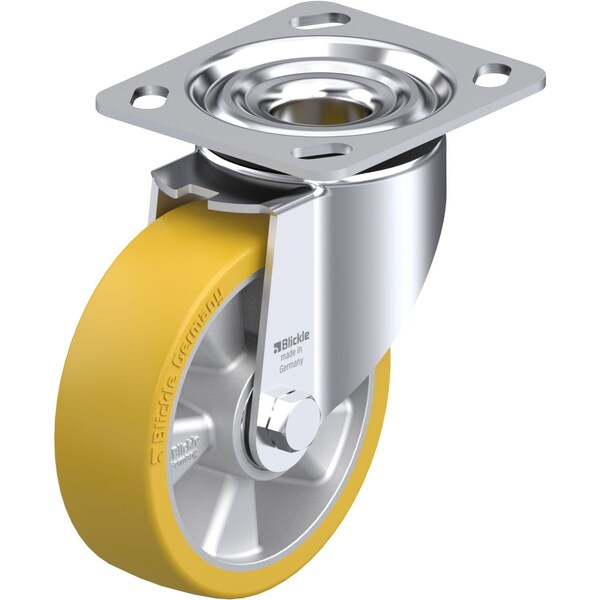

Blickle Swivel Plate Caster, PU, 5", 770 lb. LK-ALTH 125K-14 - main

Swivel Plate Caster, PU, 5", 770 lb.

  • Mfr # LK-ALTH 125K-14

  • Zoro # G0892582

product price:  $67.39
/ea

Key Features

Caster Sub-Type
Swivel
Stem Dia.
No Stem
Overall Height
6.1in
Wheel Dia.
5in
Number of Wheels
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LK-ALTH 125K-14
Zoro #
G0892582
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
6.1in
Wheel Dia.
5in
Wheel Width
1-9/16in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-3/8 in
Mounting Plate Thickness
0.138 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Sub-Type
Swivel
Item
Swivel Caster
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Load Rating
770 lb
Non-Marking
Yes
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. ALTH 125/15K
Tread
Standard
Tread Color
Light Brown
Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Silver
System of Measurement
Inch
Inside Bolt Hole Spacing
3 in x 3 in
Caster Mounting Type
Plate
Caster Brake Type
No Brake Included
Extended Lead
No
Caster Frame Material
Steel
Load Capacity
770 lb
ESD Conductive
No
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Wheel Core Material
Aluminum
Load Rating Range
Heavy-Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LK Series
Wheel Hardness Rating
92 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
