Shop BLICKLE

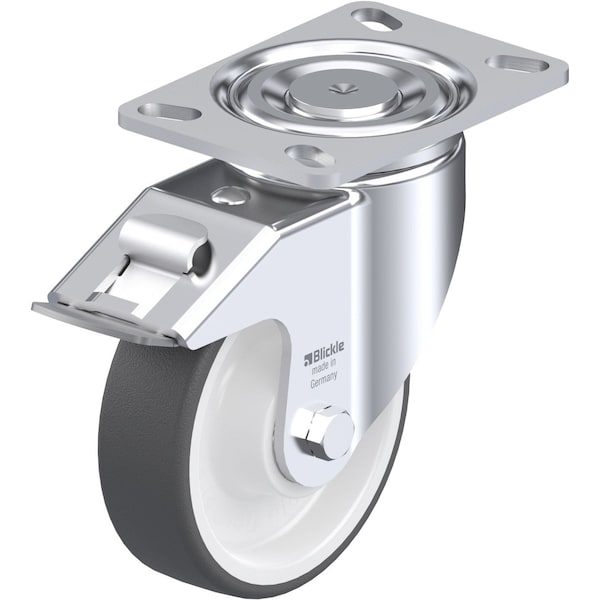

Swivel Plate Caster, PU, 6", Brake, Caster Wheel/Tread Material: Nylon/Thermoplastic Polyurethane

  • Mfr # LH-POTH 150K-16-FI

  • Zoro # G0894280

product price:
$
166.83
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Load Rating
1,100 lb
Overall Height
7.76in
Wheel Width
1-3/4in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-POTH 150K-16-FI
Zoro #
G0894280
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
7.76in
Wheel Width
1-3/4in
Stem Dia.
No Stem
Wheel Dia.
6in
Mounting Bolt Dia.
1/2 in
Swivel Radius
5-9/16 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in

Details

Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Load Rating
1,100 lb
Caster Brake Included
Yes
Number of Wheels
1
Item
Swivel With Brake
Includes
Stop-Fix Total-Lock Brake
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Tread
Standard
Caster Mounting Type
Plate
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. POTH 150/20K
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
System of Measurement
Inch
Caster Brake Type
Stop Fix Brake (Total Lock)
Core Color
White
Non-Marking
Yes
Tread Color
Gray
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Extended Lead
No
Caster Frame Material
Steel
Load Rating Range
Heavy-Duty
Number of Mounting Holes
4
Includes Thread Guards
No
Accessories
Optional: RI-05.16 (Directional Lock)
Swivel Raceway Type
Double Ball
Series
LH Series
Load Capacity
1100 lb
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Tread Shape
Standard
Wheel Core Material
Nylon
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
