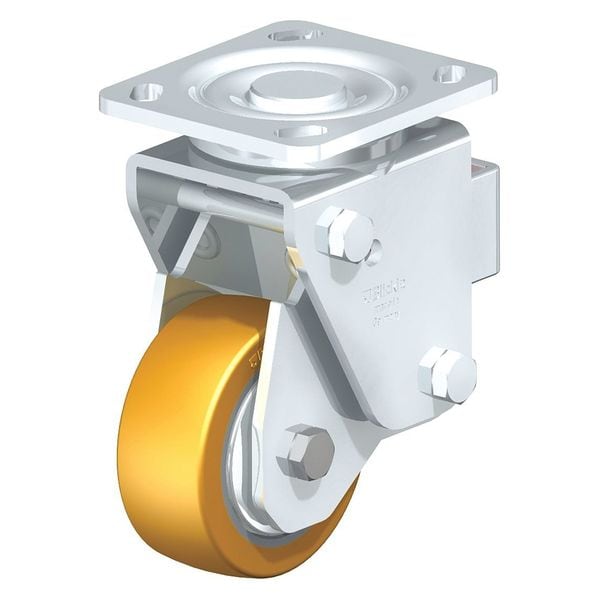

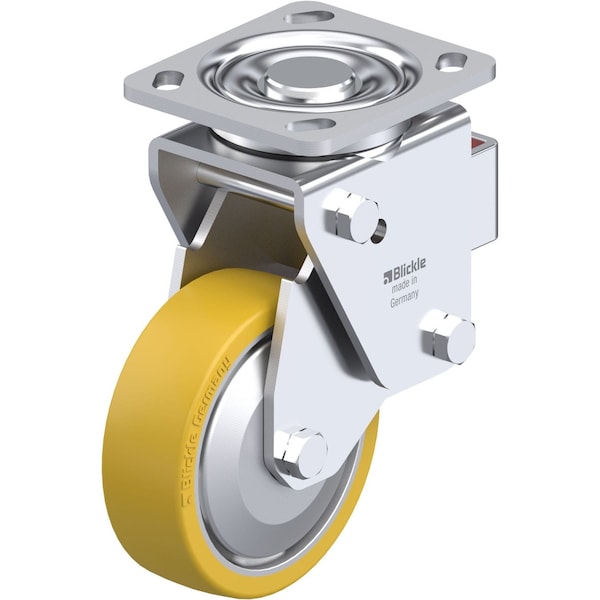

Blickle Swivel Plate Caster, PU, 5", 770 lb., Overall Height: 7.87" LHF-ALTH 125K-14-FA - main

Swivel Plate Caster, PU, 5", 770 lb., Overall Height: 7.87"

  • Mfr # LHF-ALTH 125K-14-FA

  • Zoro # G0895157

product price:  $211.99
/ea
Free Shipping & Returns

Key Features

Overall Height
7.87in
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Load Rating
770 lb.
Wheel Dia.
5in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LHF-ALTH 125K-14-FA
Zoro #
G0895157
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
7.87in
Wheel Dia.
5in
Stem Dia.
No Stem
Wheel Width
1-9/16in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Load Rating
770 lb.
Item
Swivel Caster
Caster Sub-Type
Swivel
Caster Brake Included
No
Standards
RoHS, ICWM
Inside Bolt Hole Spacing
3 in x 3 in
Core Color
Silver
Replacement Wheel
Mfr. No. ALTH 125/15K
Includes
Steel Spring Shock Absorbing
Caster Mounting Type
Plate
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Tread
Standard
System of Measurement
Inch
Tread Color
Light Brown
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
Caster Brake Type
No Brake Included
Caster Frame Material
Steel
Extended Lead
No
Includes Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Shape
Standard
Max. Spring Deflection
13/16 in
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
ESD Conductive
No
Load Capacity
300 lb
Wheel Core Material
Aluminum
Series
LHF Series
Load Rating Range
Heavy-Duty
Wheel Hardness Rating
92 Shore A
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Maximum Compression Force
530 lb
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
