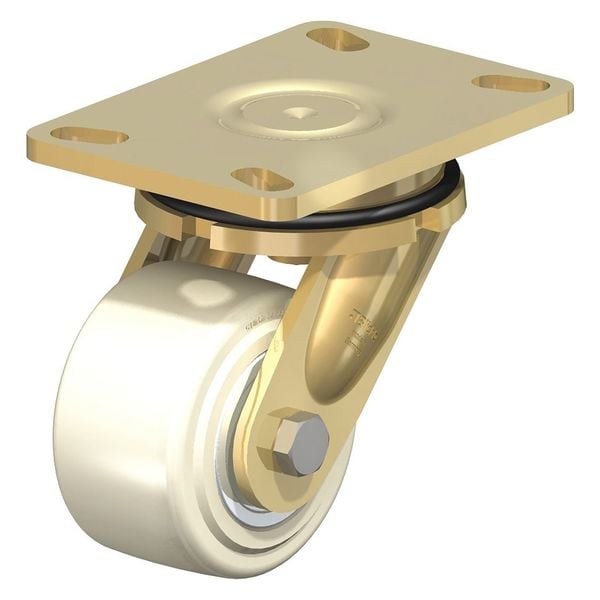

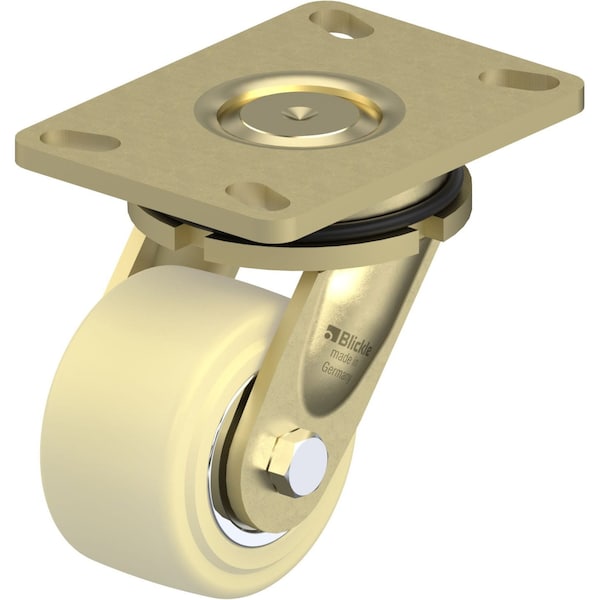

Blickle Swivel Plate Caster, Wht Nyln, 4", 2750 lb. LS-GSPO 101K-16 - main

Swivel Plate Caster, Wht Nyln, 4", 2750 lb.

  • Mfr # LS-GSPO 101K-16

  • Zoro # G0895321

product price:  $193.99
/ea
Free Shipping & Returns

Key Features

Stem Dia.
No Stem
Number of Wheels
1
Wheel Width
2-1/8in
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LS-GSPO 101K-16
Zoro #
G0895321
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4in
Stem Dia.
No Stem
Wheel Width
2-1/8in
Overall Height
5-23/32in
Mounting Bolt Dia.
1/2 in
Swivel Radius
4 in
Mounting Plate Thickness
0.315 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Number of Wheels
1
Item
Swivel Caster
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Load Rating
2,750 lb
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Replacement Wheel
Mfr. No. GSPO 101/25K
Caster Mounting Type
Plate
Non-Marking
Yes
Core Color
White
System of Measurement
Inch
Caster Brake Type
No Brake Included
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated, Yellow Passivated
Tread Color
Natural Beige
Tread
Standard
Extended Lead
No
Caster Frame Material
Steel
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Tread Shape
Standard
ESD Conductive
No
Series
LS Series
Accessories
Optional: RI-LS-16 (Directional Lock)
Wheel Core Material
Nylon
Load Rating Range
Heavy-Duty
Number of Mounting Holes
4
Includes Thread Guards
No
Load Capacity
2750 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
80 Shore D
Wheel/Tread Material
Nylon
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel
