Shop BLICKLE

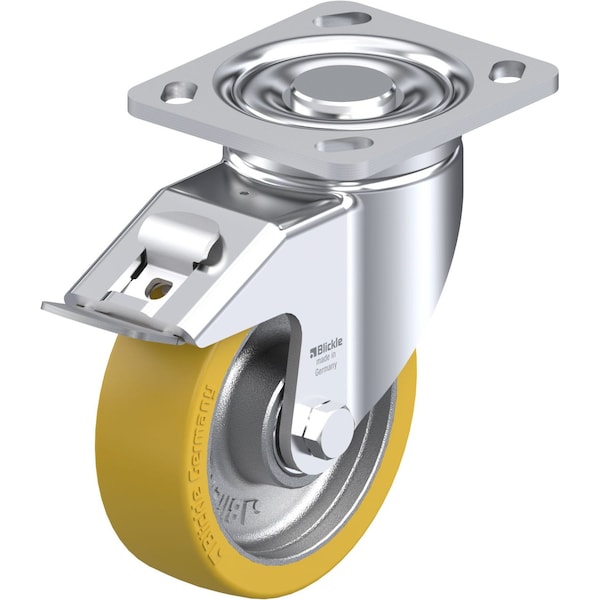

Swivel Plate Caster, PU, 5", Brake, Caster Wheel/Tread Material: Cast Iron/Polyurethane Elastomer

  • Mfr # LH-GTH 125K-14-FI

  • Zoro # G0894481

product price:
$
161.99
/ea
Free Shipping & Returns

Key Features

Stem Dia.
No Stem
Caster Stem Type
No Stem/Plate Included
Wheel Width
1-9/16in
Caster Brake Included
Yes
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-GTH 125K-14-FI
Zoro #
G0894481
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Width
1-9/16in
Wheel Dia.
5in
Overall Height
6-1/2in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Number of Wheels
1
Item
Swivel With Brake
Load Rating
1,100 lb
System of Measurement
Inch
Caster Brake Type
Stop Fix Brake (Total Lock)
Non-Marking
Yes
Includes
Stop-Fix Total-Lock Brake
Tread Color
Light Brown
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Gray
Replacement Wheel
Mfr. No. GTH 125/15K
Tread
Standard
Caster Mounting Type
Plate
Inside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Steel
Extended Lead
No
Includes Thread Guards
No
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Core Material
Cast Iron
Accessories
Optional: RI-04.14 (Directional Lock)
Load Rating Range
Heavy-Duty
Number of Mounting Holes
4
Series
LH Series
Load Capacity
1100 lb
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Wheel Hardness Rating
92 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
