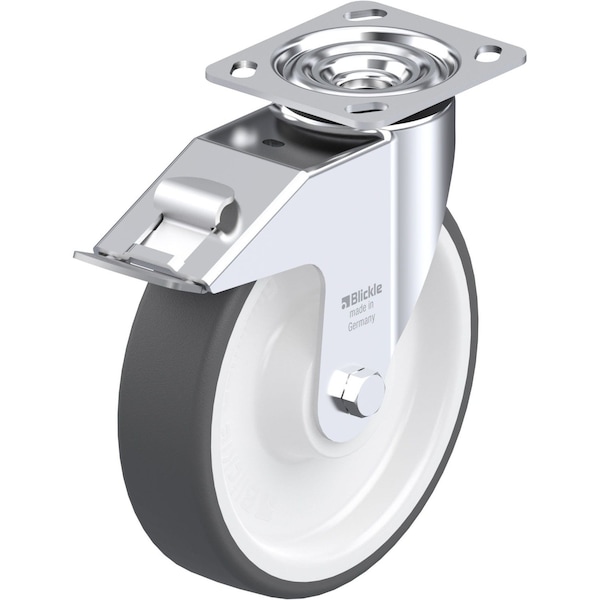

Swivel Plate Caster, PU, 8", Brake

Name: Swivel Plate Caster, PU, 8", Brake
Brand: Blickle
SKU: G0892451
Price: 106.99 USD
Availability: InStock

$106.99

/ea

Free Shipping & Returns

Stem Dia.

No Stem

Load Rating

660 lb

Overall Height

9-1/4in

Wheel Dia.

8in

Caster Stem Type

No Stem/Plate Included

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Load Rating: 660 lb
Caster Stem Type: No Stem/Plate Included
Caster Sub-Type: Swivel
Number of Wheels: 1
Item: Plate Caster
Caster Brake Included: Yes
Caster Brake Type: Stop Fix Brake (Total Lock)
Caster Mounting Type: Plate
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish: Zinc Plated
System of Measurement: Inch
Tread Color: Gray
Standards: RoHS, ICWM
Core Color: White
Tread: Standard
Outside Bolt Hole Spacing: 2-5/8 in x 3-5/8 in
Replacement Wheel: Mfr. No. POTH 200/20K
Includes: Stop-Fix Total-Lock Brake
Inside Bolt Hole Spacing: 3 in x 3 in
Non-Marking: Yes
Caster Frame Material: Steel
Extended Lead: No
Wheel Core Material: Nylon
Load Rating Range: Heavy-Duty
Includes Thread Guards: No
Number of Mounting Holes: 4
Accessories: Optional: RI-04.14 (Directional Lock)
Swivel Raceway Type: Double Ball
Load Capacity: 660 lb
ESD Conductive: No
Tread Shape: Standard
Series: LE Series
Resistant To: Very High Chemical Resistance To Many Aggressive Substances
Wheel/Tread Material: Nylon/Thermoplastic Polyurethane
Wheel Hardness Rating: 94 Shore A
Wheel Bearing Type: Precision Ball
Operating Temperature Range: -15 Degrees To 160 Degrees F
Load Capacity - Maximum: 660 lb
