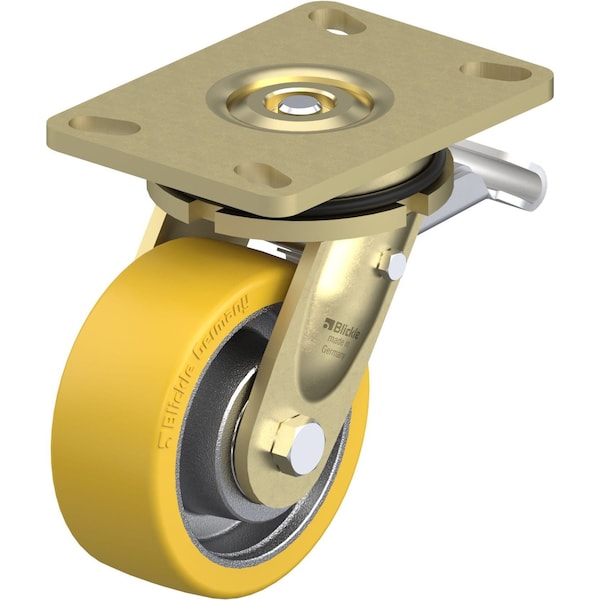

Blickle Swivel Plate Caster, PU, 5", Brake, Load Rating: 1320 lb. LS-GTH 127K-16-ST - main

Swivel Plate Caster, PU, 5", Brake, Load Rating: 1320 lb.

  • Mfr # LS-GTH 127K-16-ST

  • Zoro # G0895610

product price:  $271.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
2in
Load Rating
1320 lb.
Overall Height
6.69in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-GTH 127K-16-ST
Zoro #
G0895610
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Overall Height
6.69in
Wheel Dia.
5in
Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Swivel Radius
4-1/2 in
Mounting Plate Thickness
0.315 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Load Rating
1320 lb.
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Item
Swivel Caster With Brake
Number of Wheels
1
Caster Sub-Type
Swivel
Replacement Wheel
Mfr. No. GTH 127/20K
Frame Finish
Zinc Plated, Yellow Passivated
Non-Marking
Yes
Standards
RoHS, ICWM
Tread Color
Light Brown
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
System of Measurement
Inch
Includes
Stop-Top Total-Lock Brake
Core Color
Gray
Caster Brake Type
Stop Top Brake (Total Lock)
Caster Mounting Type
Plate
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Tread
Standard
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Extended Lead
No
Caster Frame Material
Steel
Includes Thread Guards
No
Tread Shape
Standard
Number of Mounting Holes
4
Series
LS Series
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
ESD Conductive
No
Load Capacity
1320 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Heavy-Duty
Wheel Core Material
Cast Iron
Accessories
Optional: RI-LS-16 (Directional Lock)
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
