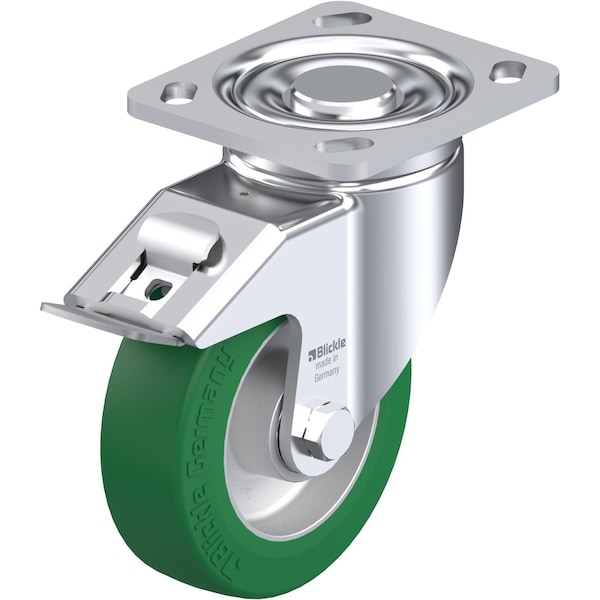

Blickle Swivel Plate Caster, PU, 5", Brake, Overall Height: 6-1/2" LH-ALST 125K-14-FI - main

Swivel Plate Caster, PU, 5", Brake, Overall Height: 6-1/2"

  • Mfr # LH-ALST 125K-14-FI

  • Zoro # G0895008

product price:  $126.99
/ea
Free Shipping & Returns

Key Features

Number of Wheels
1
Overall Height
6-1/2in
Wheel Width
1-9/16in
Caster Stem Type
No Stem/Plate Included
Load Rating
770 lb.
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LH-ALST 125K-14-FI
Zoro #
G0895008
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
6-1/2in
Wheel Width
1-9/16in
Wheel Dia.
5in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
4-1/4 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in

Details

Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster With Brake
Load Rating
770 lb.
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread Color
Green
Core Color
Silver
Replacement Wheel
Mfr. No. ALST 125/15K
Frame Finish
Zinc Plated
Non-Marking
Yes
Standards
RoHS, ICWM
Includes
Stop-Fix Total-Lock Brake
Caster Brake Type
Stop Fix Brake (Total Lock)
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Mounting Type
Plate
Tread
Standard
Inside Bolt Hole Spacing
3 in x 3 in
System of Measurement
Inch
Extended Lead
No
Caster Frame Material
Steel
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
LH Series
Tread Shape
Standard
Load Rating Range
Heavy-Duty
Accessories
Optional: RI-04.14 (Directional Lock)
Swivel Raceway Type
Double Ball
Load Capacity
770 lb
Includes Thread Guards
No
Wheel Core Material
Aluminum
Number of Mounting Holes
4
Wheel Hardness Rating
75 Shore A
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
