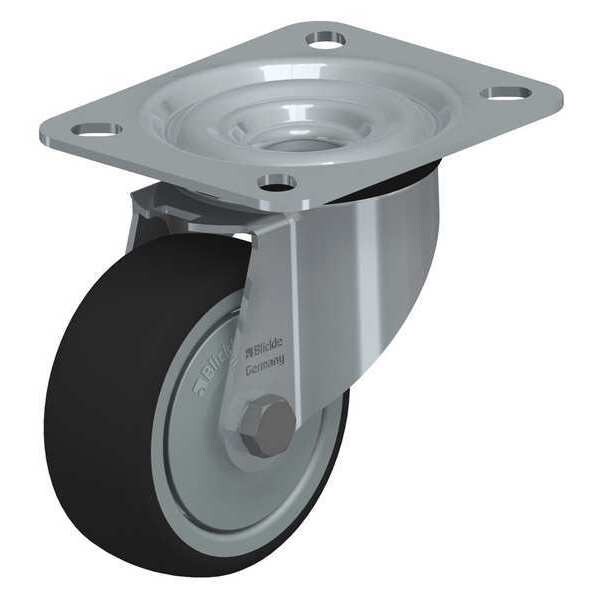

Blickle Swvl Plte Cstr, Polyurthn, 3-1/8", 330 lb. LE-PATH 80KF - main

Swvl Plte Cstr, Polyurthn, 3-1/8", 330 lb.

  • Mfr # LE-PATH 80KF

  • Zoro # G9661736

product price:  $23.45
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Caster Brake Type
No Brake Included
Wheel Dia.
80 mm
Wheel Width
32 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LE-PATH 80KF
Zoro #
G9661736
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
80 mm
Wheel Width
32 mm
Mounting Plate Size
85 mm x 100 mm
Mounting Plate Thickness
2.5 mm
Mounting Bolt Dia.
M8
Swivel Radius
78 mm
Overall Height
102 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Number of Mounting Holes
4
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Replacement Wheel
Mfr. No. PATH 80/8K-FK
Number of Wheels
1
Caster Brake Included
No
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Extended Lead
No
Series
LE Series
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
Yes
Wheel Core Material
Nylon
Tread Shape
Standard
Tread Color
Dark Gray
Swivel Raceway Type
Double Ball
ESD Conductive
No
Load Capacity
150 kg
Tread
Standard
Accessories
Optional: RI-04.14 (Directional Lock)
Load Rating Range
Medium Duty
Wheel Hardness Rating
94 Shore A
Wheel/Tread Material
Thermoplastic Polyurethane
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel
