Shop BLICKLE

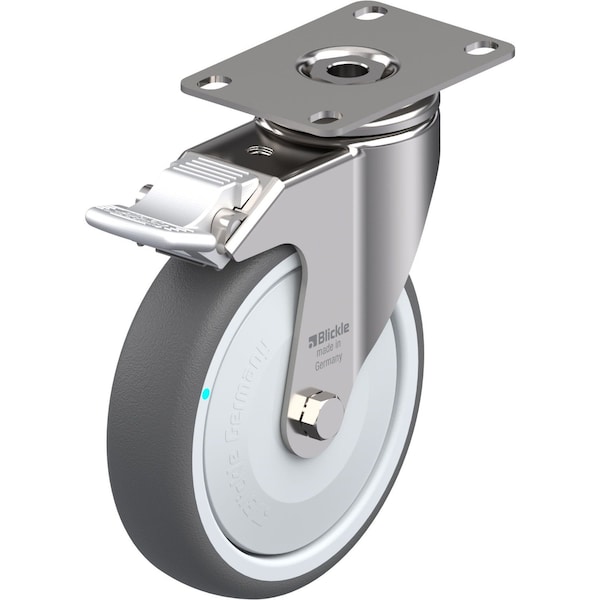

Swivel Plate Caster, PU, 5", Brake, Overall Height: 6.34"

  • Mfr # LKPXA-PATH 126KFD-12-FI

  • Zoro # G0890333

product price:  $64.15
/ea

Key Features

Caster Sub-Type
Swivel
Overall Height
6.34in
Number of Wheels
1
Stem Dia.
No Stem
Load Rating
265 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKPXA-PATH 126KFD-12-FI
Zoro #
G0890333
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
6.34in
Stem Dia.
No Stem
Wheel Width
1-1/4in
Wheel Dia.
5in
Mounting Bolt Dia.
5/16 in
Swivel Radius
4-1/16 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.089 in

Details

Item
Swivel With Brake
Caster Sub-Type
Swivel
Number of Wheels
1
Load Rating
265 lb
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Caster Mounting Type
Plate
System of Measurement
Inch
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Standards
RoHS, ICWM, NSF
Replacement Wheel
Mfr. No. PATH 126/8KD-FK
Non-Marking
Yes
Frame Finish
Stainless Steel
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Includes
Stop-Fix Total-Lock Brake
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Tread Color
Dark Gray
Tread
Standard
Caster Brake Type
Stop Fix Brake (Total Lock)
Core Color
Gray
Caster Frame Material
Stainless Steel
Extended Lead
No
Tread Shape
Standard
Load Capacity
265 lb
Load Rating Range
Light-Duty
Swivel Raceway Type
Double Ball
Wheel Core Material
Nylon
Includes Thread Guards
Yes
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Number of Mounting Holes
4
Series
LKPXA Series
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
