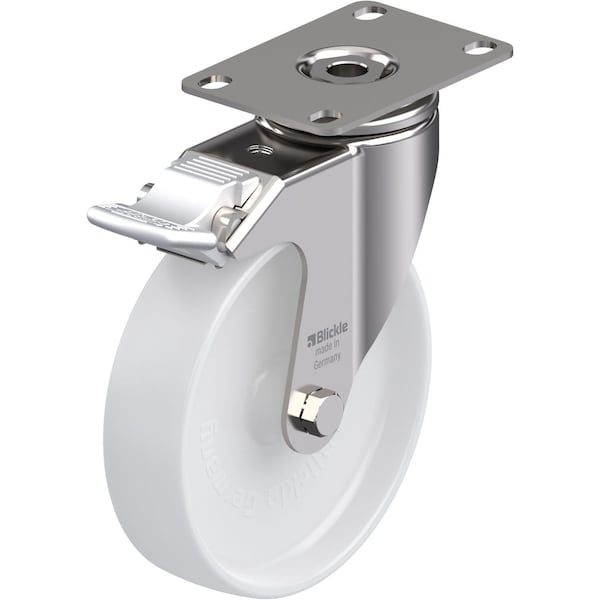

Blickle Swivel Plate Caster, Wht Nylon, 5", Brake, Caster Load Rating Range: Light-Duty LKPXA-PO 126G-12-FI - main

Swivel Plate Caster, Wht Nylon, 5", Brake, Caster Load Rating Range: Light-Duty

  • Mfr # LKPXA-PO 126G-12-FI

  • Zoro # G0889283

product price:  $61.65
/ea

Key Features

Caster Stem Type
No Stem/Plate Included
Stem Dia.
No Stem
Caster Sub-Type
Swivel
Number of Wheels
1
Overall Height
6.34in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LKPXA-PO 126G-12-FI
Zoro #
G0889283
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
6.34in
Wheel Dia.
5in
Wheel Width
1-1/4in
Mounting Bolt Dia.
5/16 in
Swivel Radius
4-1/16 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.089 in

Details

Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
Number of Wheels
1
Caster Brake Included
Yes
Load Rating
265 lb.
Caster Mounting Type
Plate
Application
Retail, Industrial, Commercial, Corrosion Resistance
Tread
Standard
Non-Marking
Yes
Standards
RoHS, ICWM, NSF
Includes
Stop-Fix Total-Lock Brake
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Core Color
White
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
System of Measurement
Inch
Replacement Wheel
Mfr. No. PO 126/12G
Caster Brake Type
Stop Fix Brake (Total Lock)
Tread Color
White
Frame Finish
Stainless Steel
Caster Frame Material
Stainless Steel
Extended Lead
No
Series
LKPXA Series
Load Capacity
265 lb
Includes Thread Guards
No
Tread Shape
Standard
ESD Conductive
No
Wheel Core Material
Nylon
Swivel Raceway Type
Double Ball
Resistant To
High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes
4
Load Rating Range
Light-Duty
Wheel Hardness Rating
70 Shore D
Wheel/Tread Material
Nylon
Wheel Bearing Type
Plain
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
