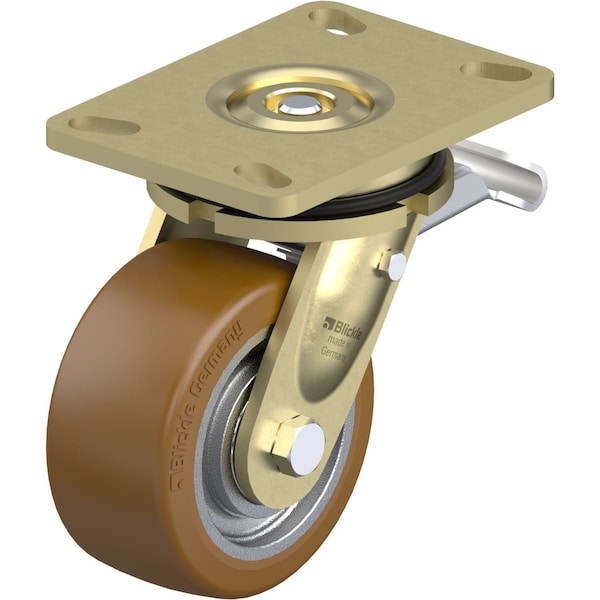

Blickle Swivel Plate Caster, PU, 5", Brake, Wheel Width: 2-3/8" LS-GB 128K-16-ST - main

Swivel Plate Caster, PU, 5", Brake, Wheel Width: 2-3/8"

  • Mfr # LS-GB 128K-16-ST

  • Zoro # G0895793

product price:  $300.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Caster Brake Included
Yes
Wheel Width
2-3/8in
Stem Dia.
No Stem
Caster Stem Type
No Stem/Plate Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-GB 128K-16-ST
Zoro #
G0895793
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2-3/8in
Stem Dia.
No Stem
Wheel Dia.
5in
Overall Height
6.69in
Mounting Bolt Dia.
1/2 in
Swivel Radius
4-1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Caster Sub-Type
Swivel
Caster Brake Included
Yes
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster With Brake
Load Rating
1,540 lb
Number of Wheels
1
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Standards
RoHS, ICWM
Caster Mounting Type
Plate
Tread Color
Brown
Tread
Standard
Frame Finish
Zinc Plated, Yellow Passivated
Replacement Wheel
Mfr. No. GB 128/20K
System of Measurement
Inch
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Non-Marking
Yes
Includes
Stop-Top Total-Lock Brake
Caster Brake Type
Stop Top Brake (Total Lock)
Extended Lead
No
Caster Frame Material
Steel
Load Capacity
1540 lb
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Number of Mounting Holes
4
Load Rating Range
Heavy-Duty
ESD Conductive
No
Wheel Core Material
Cast Iron
Series
LS Series
Includes Thread Guards
No
Tread Shape
Standard
Accessories
Optional: RI-LS-16 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating
92 Shore A
Wheel/Tread Material
Cast Iron/Polyurethane
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
