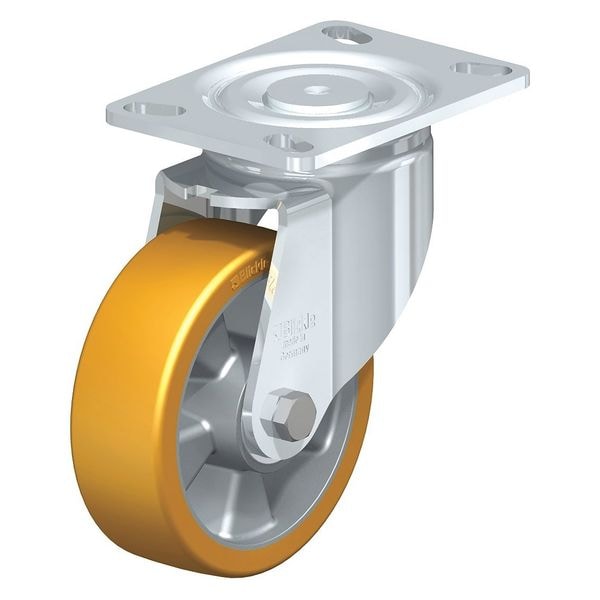

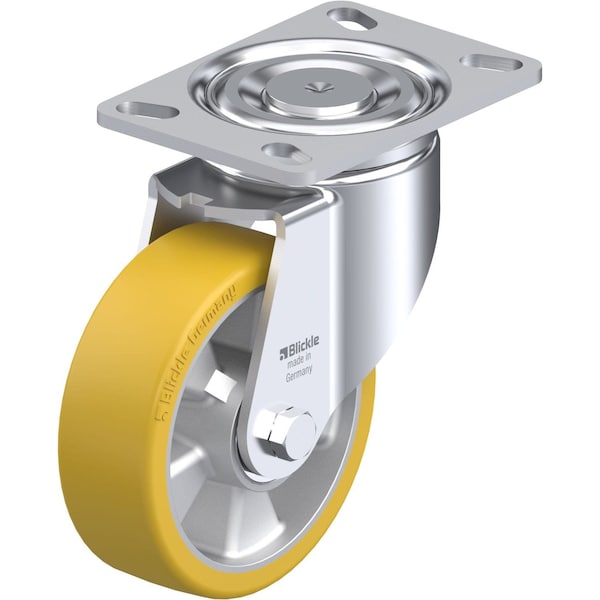

Blickle Swivel Plate Caster, PU, 6", 1100 lb. LH-ALTH 150K-16 - main

Swivel Plate Caster, PU, 6", 1100 lb.

  • Mfr # LH-ALTH 150K-16

  • Zoro # G0894840

product price:  $128.99
/ea
Free Shipping & Returns

Key Features

Caster Stem Type
No Stem/Plate Included
Wheel Width
2in
Stem Dia.
No Stem
Number of Wheels
1
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-ALTH 150K-16
Zoro #
G0894840
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Stem Dia.
No Stem
Wheel Dia.
6in
Overall Height
7.76in
Mounting Bolt Dia.
1/2 in
Swivel Radius
5-9/16 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Item
Swivel Caster
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Caster Sub-Type
Swivel
Load Rating
1100 lb.
Caster Brake Included
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Tread Color
Light Brown
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Non-Marking
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Type
No Brake Included
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Replacement Wheel
Mfr. No. ALTH 150/20K
Core Color
Silver
System of Measurement
Inch
Tread
Standard
Standards
RoHS, ICWM
Caster Frame Material
Steel
Extended Lead
No
Accessories
Optional: RI-05.16 (Directional Lock)
Includes Thread Guards
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Shape
Standard
Wheel Core Material
Aluminum
Load Capacity
1100 lb
Number of Mounting Holes
4
Load Rating Range
Heavy-Duty
Series
LH Series
Swivel Raceway Type
Double Ball
ESD Conductive
No
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
