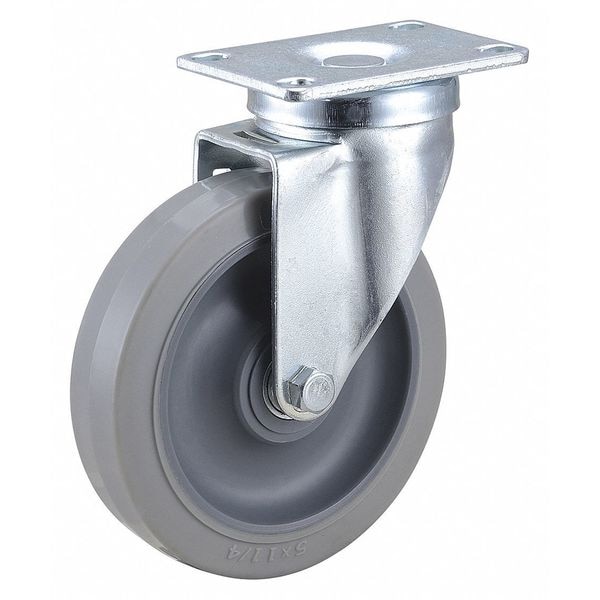

Plate Caster, 325 lb. Load Rating, Swivel

product price: $7.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Thermoplastic Rubber
See all product information

Product Information

Dimensions

Overall Height 6-3/16"
Wheel Dia. 5 in
Wheel Width 1 1/4 in
Stem Dia. No Stem
Swivel Radius 3 7/8 in
Caster Plate Size 2-1/2" x 3-5/8"
Mounting Bolt Dia. 5/16 in
Plate Size 2-1/2" x 3-5/8"
Mounting Height 6 3/16 in
Mounting Plate Size 2 1/2 in x 3 5/8 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Thermoplastic Rubber
Load Rating 325 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Application General Purpose
Caster Frame Material Steel
Caster Swivel Lock Type No Lock Included
Frame Finish Zinc Plated
Durometer 75 Shore A
Caster Wheel Bearings Ball
Core Color Gray
Extended Lead No
Caster Max. Temp. 175 Degrees F
Plate Caster Bolt Hole Pattern C
Wheel Color Gray
Caster Temp. Range -40 Degrees to 175 Degrees F
Non-Marking Yes
Thread Guards No
Plate Thickness 5/32"
Caster Plate Thickness 5/32"
Caster Plate Hole Pattern C
Caster Product Group Swivel Caster
Caster Raceway Double Ball
Replacement Wheel 1UHY5
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Item Standard Plate Caster
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Frame Material Steel
Caster Temp. Range Available Yes
Caster Core Material Polyolefin
Caster Min. Temp. -40 Degrees F
Caster Brake Type No Brake Included
Tread Shape Standard
Number of Mounting Holes 4
Mounting Plate Bolt Hole Pattern C
Swivel Raceway Type Double Ball
Swivel Construction Kingpin
Swivel Lock Type No Lock Included
Wheel/Tread Hardness 75 Shore A
Wheel/Tread Hardness Rating Soft
Wheel Core Material Plastic
Wheel Bearing Type Precision Ball
Includes Thread Guards No
Load Rating Range 300 to 999 lb
Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Color Gray

Description

Swivel, Standard Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
