Shop BLICKLE

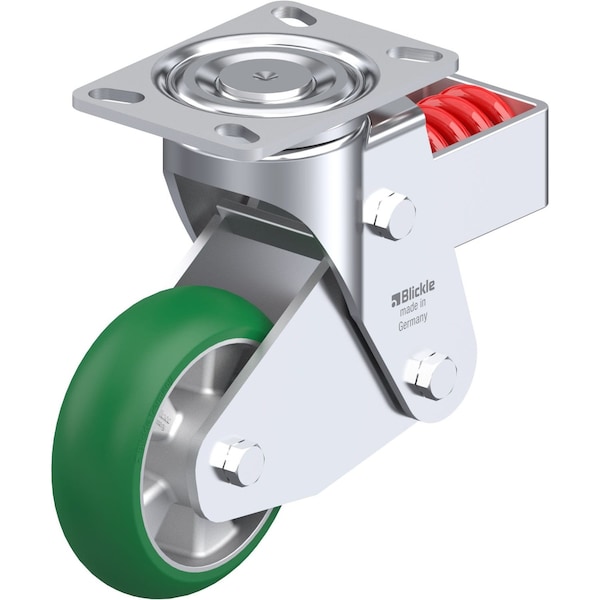

Swivel Plate Caster, PU, 6", 1100 lb., Overall Height: 9-1/2"

  • Mfr # LHF-ALST 150K-16-CO

  • Zoro # G0895717

product price:  $382.99
/ea
Free Shipping & Returns

Key Features

Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Wheel Dia.
6in
Overall Height
9-1/2in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LHF-ALST 150K-16-CO
Zoro #
G0895717
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6in
Overall Height
9-1/2in
Stem Dia.
No Stem
Wheel Width
2in
Mounting Bolt Dia.
1/2 in
Swivel Radius
5-9/16 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in

Details

Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Load Rating
1,100 lb
Caster Sub-Type
Swivel
Item
Swivel
Standards
RoHS, ICWM
System of Measurement
Inch
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Core Color
Silver
Tread Color
Green
Tread
Crowned
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Type
No Brake Included
Frame Finish
Zinc Plated
Includes
Steel Spring Shock Absorbing, Extra Crowned Tread
Caster Mounting Type
Plate
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Non-Marking
Yes
Replacement Wheel
Mfr. No. ALST 150/20K-CO
Extended Lead
No
Caster Frame Material
Steel
Load Rating Range
Heavy-Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Max. Spring Deflection
1 in
Wheel Core Material
Aluminum
Series
LHF Series
ESD Conductive
No
Load Capacity
680 lb
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Tread Shape
Extra Crowned
Wheel Hardness Rating
75 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Maximum Compression Force
1255 lb
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
