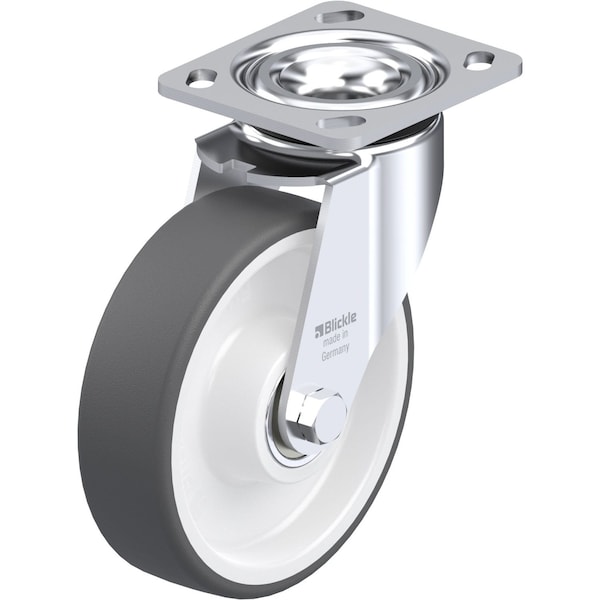

Swivel Plate Caster, PU, 6-5/16", 1210 lb.

Name: Swivel Plate Caster, PU, 6-5/16", 1210 lb.
Brand: Blickle
SKU: G0893608
Price: 94.99 USD
Availability: InStock

94.99

/ea

Overall Height

7-1/2in

Wheel Width

1-3/4in

Caster Sub-Type

Swivel

Wheel Dia.

6-5/16in

Load Rating

1,210 lb

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: LEH-POTH 160K-14
Zoro #: G0893608
UPC #: -
Country of Origin: Germany
Item: Swivel
Caster Sub-Type: Swivel
Load Rating: 1,210 lb
Caster Stem Type: No Stem/Plate Included
Number of Wheels: 1
Caster Brake Included: No
System of Measurement: Inch
Frame Finish: Zinc Plated
Replacement Wheel: Mfr. No. POTH 160/20K
Standards: RoHS, ICWM
Caster Mounting Type: Plate
Core Color: White
Tread Color: Gray
Application: Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Inside Bolt Hole Spacing: 3 in x 3 in
Caster Brake Type: No Brake Included
Tread: Standard
Non-Marking: Yes
Outside Bolt Hole Spacing: 2-5/8 in x 3-5/8 in
Caster Frame Material: Steel
Extended Lead: No
Swivel Raceway Type: Double Ball
Load Capacity: 1210 lb
Number of Mounting Holes: 4
ESD Conductive: No
Resistant To: Very High Chemical Resistance To Many Aggressive Substances
Load Rating Range: Heavy-Duty
Series: LEH Series
Wheel Core Material: Nylon
Accessories: Optional: RI-04.14 (Directional Lock)
Includes Thread Guards: No
Tread Shape: Standard
Wheel/Tread Material: Nylon/Thermoplastic Polyurethane
Wheel Hardness Rating: 94 Shore A
Wheel Bearing Type: Precision Ball
Operating Temperature Range: -15 Degrees To 160 Degrees F

Swivel
