Blickle Swivel Plate Caster, PU, 6-5/16", 660 lb. LE-PATH 160KA-14 - main

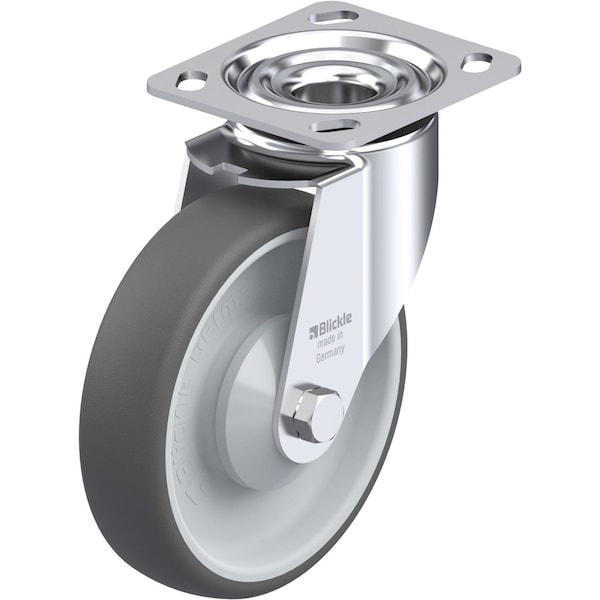

Swivel Plate Caster, PU, 6-5/16", 660 lb.

  • Mfr # LE-PATH 160KA-14

  • Zoro # G0891961

product price:  $53.89
/ea

Key Features

Number of Wheels
1
Stem Dia.
No Stem
Overall Height
7.68in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LE-PATH 160KA-14
Zoro #
G0891961
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
7.68in
Wheel Dia.
6-5/16in
Wheel Width
1-9/16in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-9/32 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.138 in

Details

Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Caster Sub-Type
Swivel
Item
Swivel Caster
Load Rating
660 lb.
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
System of Measurement
Inch
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Caster Brake Type
No Brake Included
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread Color
Dark Gray
Replacement Wheel
Mfr. No. PATH 160/12K
Tread
Standard
Caster Mounting Type
Plate
Core Color
Gray
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Extended Lead
No
Caster Frame Material
Steel
Wheel Core Material
Nylon
Accessories
Optional: RI-04.14 (Directional Lock)
Load Rating Range
Medium Duty
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Tread Shape
Standard
Series
LE Series
Includes Thread Guards
Yes
ESD Conductive
No
Load Capacity
300 kg
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Wheel Hardness Rating
94 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
