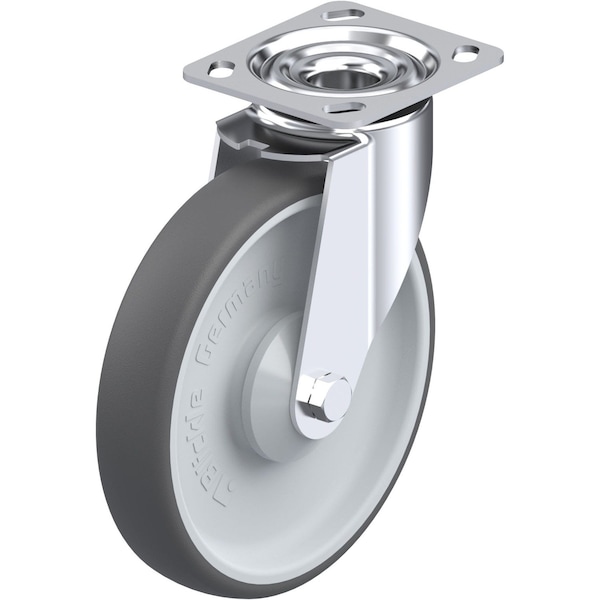

Blickle Swivel Plate Caster, PU, 8", 660 lb., Wheel Width: 1-9/16" LE-PATH 200KA-14 - main

Swivel Plate Caster, PU, 8", 660 lb., Wheel Width: 1-9/16"

  • Mfr # LE-PATH 200KA-14

  • Zoro # G0891989

product price:  $64.79
/ea

Key Features

Overall Height
9-1/4in
Stem Dia.
No Stem
Caster Brake Included
No
Load Rating
660 lb.
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LE-PATH 200KA-14
Zoro #
G0891989
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
9-1/4in
Stem Dia.
No Stem
Wheel Dia.
8in
Wheel Width
1-9/16in
Mounting Bolt Dia.
3/8 in
Swivel Radius
6-1/8 in
Mounting Plate Thickness
0.138 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Brake Included
No
Load Rating
660 lb.
Caster Sub-Type
Swivel
Item
Swivel Caster
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Tread Color
Dark Gray
System of Measurement
Inch
Standards
RoHS, ICWM
Non-Marking
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Zinc Plated
Caster Brake Type
No Brake Included
Core Color
Gray
Caster Mounting Type
Plate
Replacement Wheel
Mfr. No. PATH 200/12K
Tread
Standard
Inside Bolt Hole Spacing
3 in x 3 in
Extended Lead
No
Caster Frame Material
Steel
Load Rating Range
Medium Duty
ESD Conductive
No
Wheel Core Material
Nylon
Includes Thread Guards
Yes
Tread Shape
Standard
Number of Mounting Holes
4
Load Capacity
300 kg
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Series
LE Series
Swivel Raceway Type
Double Ball
Accessories
Optional: RI-04.14 (Directional Lock)
Wheel/Tread Material
Nylon/Thermoplastic Polyurethane
Wheel Hardness Rating
94 Shore A
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
