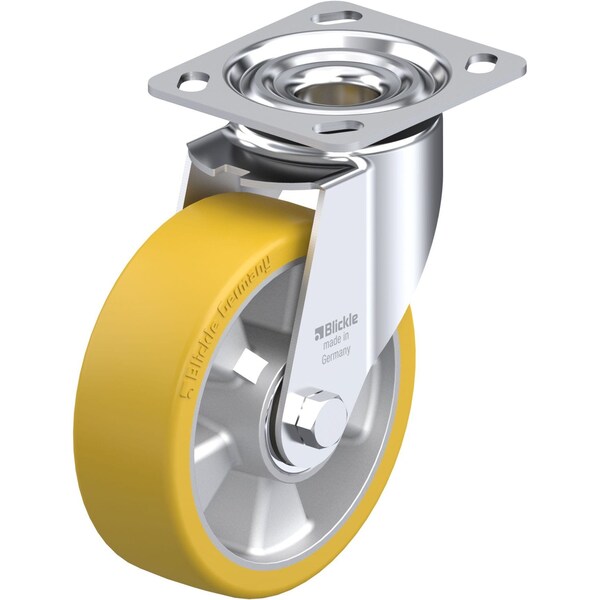

Blickle Swivel Plate Caster, PU, 6", 660 lb. LE-ALTH 150K-14 - main

Swivel Plate Caster, PU, 6", 660 lb.

  • Mfr # LE-ALTH 150K-14

  • Zoro # G0892567

product price:  $84.29
/ea

Key Features

Stem Dia.
No Stem
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Load Rating
660 lb
Overall Height
7-1/2in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LE-ALTH 150K-14
Zoro #
G0892567
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
7-1/2in
Wheel Width
2in
Wheel Dia.
6in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-1/8 in
Mounting Plate Thickness
0.138 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Load Rating
660 lb
Item
Swivel Caster
Caster Sub-Type
Swivel
Number of Wheels
1
Inside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
Mfr. No. ALTH 150/20K
Core Color
Silver
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Non-Marking
Yes
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread Color
Light Brown
Tread
Standard
Caster Brake Type
No Brake Included
System of Measurement
Inch
Extended Lead
No
Caster Frame Material
Steel
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Heavy-Duty
ESD Conductive
No
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Includes Thread Guards
No
Wheel Core Material
Aluminum
Number of Mounting Holes
4
Load Capacity
660 lb
Accessories
Optional: RI-04.14 (Directional Lock)
Series
LE Series
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Hardness Rating
92 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
