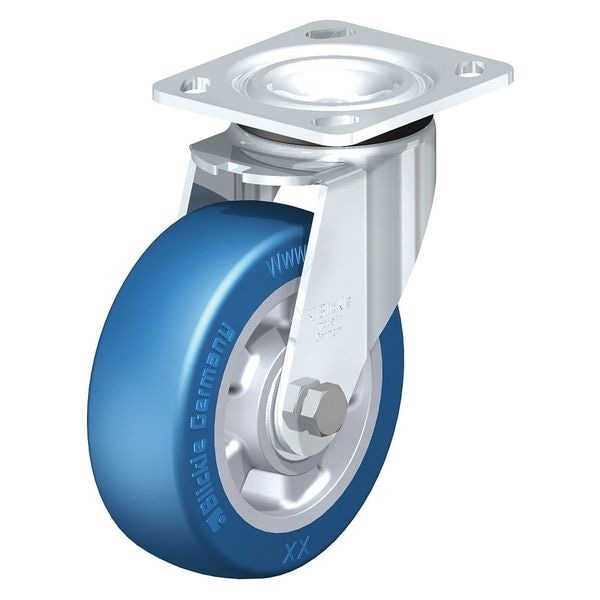

Swivel Plate Caster, PU, 6-5/16", Brake

  • Mfr # LEH-ALBS 160K-14-FI-CO
  • Zoro # G0893958
product price:
$
137.99
/ea
Free Shipping & Returns

Key Features

Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Wheel Width
2in
Wheel Dia.
6-5/16in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LEH-ALBS 160K-14-FI-CO
Zoro #
G0893958
UPC #
-
Country of Origin
Germany
Caster Stem Type
No Stem/Plate Included
Item
Swivel With Brake
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Number of Wheels
1
Load Rating
1,210 lb
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Brake Type
Stop Fix Brake (Total Lock)
Inside Bolt Hole Spacing
3 in x 3 in
Tread Color
Blue
Frame Finish
Zinc Plated
Includes
Stop-Fix Total-Lock Brake, Extra Crowned Tread
Replacement Wheel
Mfr. No. ALBS 160/20K-CO
Caster Mounting Type
Plate
Core Color
Silver
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
System of Measurement
Inch
Tread
Crowned
Non-Marking
Yes
Extended Lead
No
Caster Frame Material
Steel
Accessories
Optional: RI-04.14 (Directional Lock)
Load Capacity
1210 lb
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Includes Thread Guards
No
Load Rating Range
Heavy-Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LEH Series
ESD Conductive
No
Wheel Core Material
Aluminum
Tread Shape
Extra Crowned
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
75 Shore A
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Dimensions

Wheel Width
2in
Wheel Dia.
6-5/16in
Overall Height
7-1/2in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-13/32 in
Mounting Plate Thickness
0.197 in
Mounting Plate Size
4 in x 4-1/2 in

Description

Swivel With Brake
