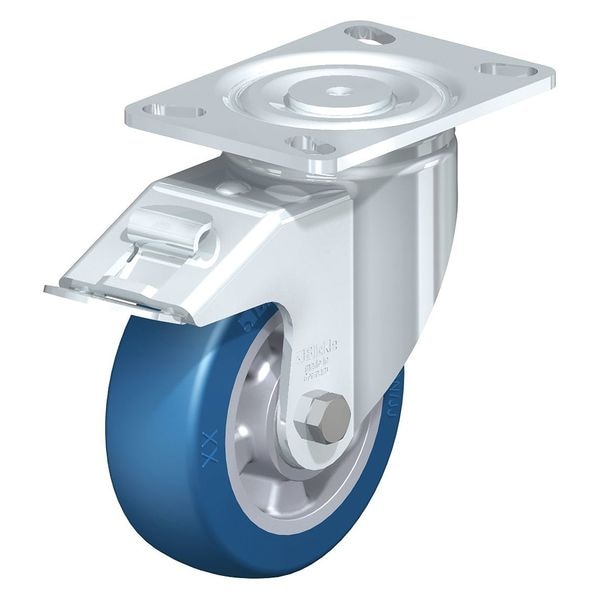

Blickle Swivel Plate Caster, PU, 6", Brake, Caster Wheel Shape: Extra Crowned LH-ALBS 150K-16-FI-CO - main

Swivel Plate Caster, PU, 6", Brake, Caster Wheel Shape: Extra Crowned

  • Mfr # LH-ALBS 150K-16-FI-CO

  • Zoro # G0894551

product price:  $224.99
/ea
Free Shipping & Returns

Key Features

Load Rating
1,100 lb
Wheel Dia.
6in
Caster Brake Included
Yes
Overall Height
7.76in
Number of Wheels
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LH-ALBS 150K-16-FI-CO
Zoro #
G0894551
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6in
Overall Height
7.76in
Wheel Width
2in
Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Swivel Radius
5-9/16 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in

Details

Item
Swivel Caster With Brake
Load Rating
1,100 lb
Caster Brake Included
Yes
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Caster Sub-Type
Swivel
Caster Brake Type
Stop Fix Brake (Total Lock)
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
System of Measurement
Inch
Non-Marking
Yes
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. ALBS 150/20K-CO
Tread Color
Blue
Core Color
Silver
Tread
Crowned
Includes
Stop-Fix Total-Lock Brake, Extra Crowned Tread
Caster Mounting Type
Plate
Caster Frame Material
Steel
Extended Lead
No
Load Capacity
1100 lb
Load Rating Range
Heavy-Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: RI-05.16 (Directional Lock)
Series
LH Series
Number of Mounting Holes
4
ESD Conductive
No
Wheel Core Material
Aluminum
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Tread Shape
Extra Crowned
Wheel Hardness Rating
75 Shore A
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
