  6. Swivel Plate Caster, PU, 6", Brake

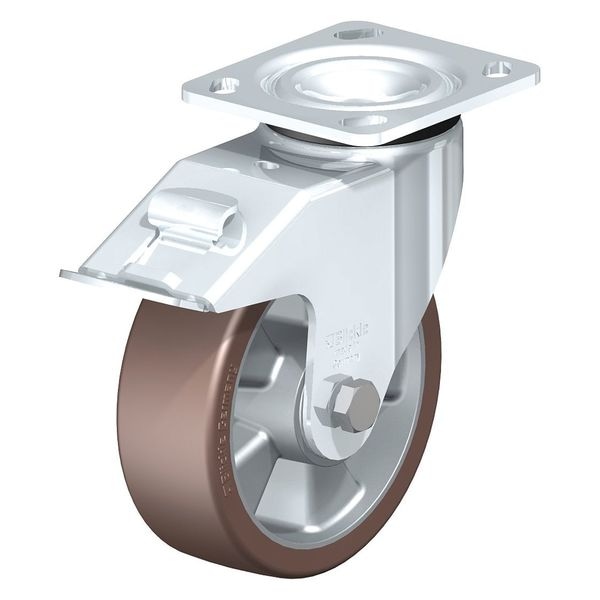

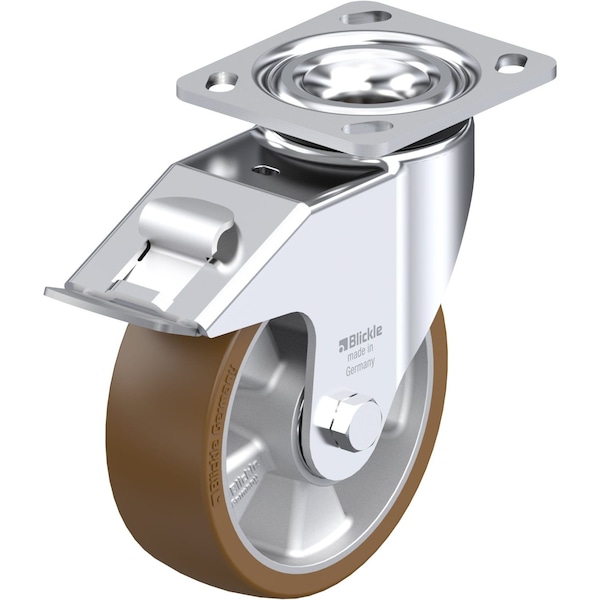

Blickle Swivel Plate Caster, PU, 6", Brake LEH-ALB 150K-14-FI - main

Swivel Plate Caster, PU, 6", Brake

  • Mfr # LEH-ALB 150K-14-FI

  • Zoro # G0893888

product price:  $123.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Caster Brake Included
Yes
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Stem Dia.
No Stem
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LEH-ALB 150K-14-FI
Zoro #
G0893888
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Wheel Width
2in
Wheel Dia.
6in
Overall Height
7.52in
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-1/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.197 in

Details

Caster Sub-Type
Swivel
Caster Brake Included
Yes
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster With Brake
Load Rating
1100 lb.
System of Measurement
Inch
Includes
Stop-Fix Total-Lock Brake
Caster Mounting Type
Plate
Replacement Wheel
Mfr. No. ALB 150/20K
Caster Brake Type
Stop Fix Brake (Total Lock)
Inside Bolt Hole Spacing
3 in x 3 in
Standards
RoHS, ICWM
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Frame Finish
Zinc Plated
Core Color
Silver
Tread
Standard
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread Color
Brown
Extended Lead
No
Caster Frame Material
Steel
Number of Mounting Holes
4
Load Rating Range
Heavy-Duty
Series
LEH Series
ESD Conductive
No
Includes Thread Guards
No
Tread Shape
Standard
Accessories
Optional: RI-04.14 (Directional Lock)
Wheel Core Material
Aluminum
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Double Ball
Load Capacity
1100 lb
Wheel Hardness Rating
92 Shore A
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Plate Caster
