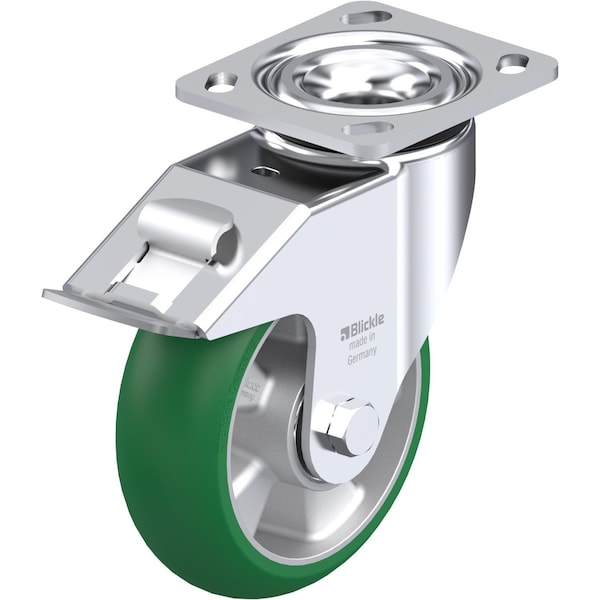

Blickle Swivel Plate Caster, PU, 6", Brake, Load Rating: 1100 lb. LEH-ALST 150K-14-FI-CO - main

Swivel Plate Caster, PU, 6", Brake, Load Rating: 1100 lb.

  • Mfr # LEH-ALST 150K-14-FI-CO

  • Zoro # G0893739

product price:  $125.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
2-1/8in
Overall Height
7.52in
Caster Stem Type
No Stem/Plate Included
Load Rating
1100 lb.
Caster Brake Included
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LEH-ALST 150K-14-FI-CO
Zoro #
G0893739
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2-1/8in
Overall Height
7.52in
Wheel Dia.
6in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
5-1/8 in
Mounting Plate Thickness
0.197 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Stem Type
No Stem/Plate Included
Load Rating
1100 lb.
Caster Brake Included
Yes
Item
Swivel Caster With Brake
Number of Wheels
1
Caster Sub-Type
Swivel
Replacement Wheel
Mfr. No. ALST 150/20K-CO
System of Measurement
Inch
Caster Brake Type
Stop Fix Brake (Total Lock)
Tread Color
Green
Caster Mounting Type
Plate
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread
Crowned
Includes
Stop-Fix Total-Lock Brake, Extra Crowned Tread
Core Color
Silver
Non-Marking
Yes
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Inside Bolt Hole Spacing
3 in x 3 in
Extended Lead
No
Caster Frame Material
Steel
Load Capacity
1100 lb
Number of Mounting Holes
4
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Wheel Core Material
Aluminum
Load Rating Range
Heavy-Duty
Tread Shape
Extra Crowned
Includes Thread Guards
No
Accessories
Optional: RI-04.14 (Directional Lock)
Swivel Raceway Type
Double Ball
Series
LEH Series
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Wheel Hardness Rating
75 Shore A
Wheel Bearing Type
Precision Ball
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
