  6. Swvl Plate Cstr, Polyurethane, 3", 165 lb.

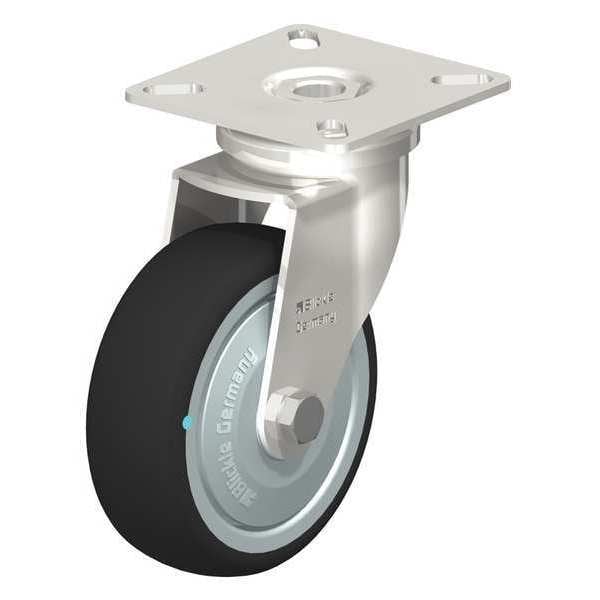

Blickle Swvl Plate Cstr, Polyurethane, 3", 165 lb. LPXA-PATH 75KFD - main

Swvl Plate Cstr, Polyurethane, 3", 165 lb.

  • Mfr # LPXA-PATH 75KFD

  • Zoro # G9659968

product price:  $50.89
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Caster Brake Type
No Brake Included
Wheel Width
25 mm
Caster Mounting Type
Plate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LPXA-PATH 75KFD
Zoro #
G9659968
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
25 mm
Mounting Plate Size
60 mm x 60 mm
Mounting Plate Thickness
2 mm
Overall Height
100 mm
Swivel Radius
66.5 mm
Mounting Bolt Dia.
M6
Wheel Dia.
75 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Caster Brake Type
No Brake Included
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
48 mm x 48 mm
Inside Bolt Hole Spacing
38 mm x 38 mm
Frame Finish
Stainless Steel
Replacement Wheel
Mfr. No. PATH 75/6KD-FK
Standards
RoHS, ICWM, NSF
Caster Brake Included
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Extended Lead
No
Swivel Raceway Type
Double Ball
Tread Color
Dark Gray
Load Capacity
75 kg
Includes Thread Guards
Yes
Series
LPXA Series
ESD Conductive
No
Tread
Standard
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Light Duty
Wheel Core Material
Nylon
Wheel/Tread Material
Thermoplastic Polyurethane
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel
