Shop BLICKLE

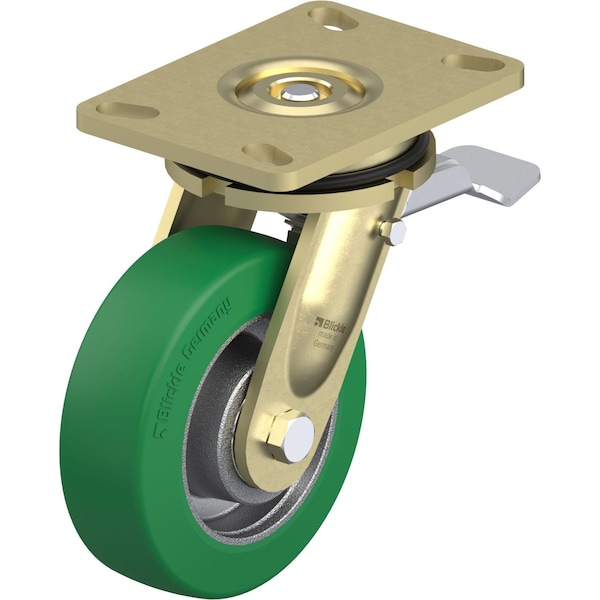

Swivel Plate Caster, PU, 6", Brake, Load Rating: 1210 lb.

  • Mfr # LS-GST 150K-16-ST
  • Zoro # G0895540
product price:
$
348.99
/ea
Free Shipping & Returns

Key Features

Number of Wheels
1
Wheel Width
2in
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Load Rating
1,210 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-GST 150K-16-ST
Zoro #
G0895540
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Wheel Dia.
6in
Stem Dia.
No Stem
Overall Height
7.87in
Mounting Bolt Dia.
1/2 in
Swivel Radius
5-1/8 in
Mounting Plate Thickness
0.315 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Number of Wheels
1
Caster Sub-Type
Swivel
Caster Stem Type
No Stem/Plate Included
Load Rating
1,210 lb
Item
Swivel With Brake
Caster Brake Included
Yes
Standards
RoHS, ICWM
Tread Color
Green
Caster Brake Type
Stop Top Brake (Total Lock)
Tread
Standard
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
System of Measurement
Inch
Non-Marking
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Mounting Type
Plate
Includes
Stop-Top Total-Lock Brake
Core Color
Gray
Frame Finish
Zinc Plated, Yellow Passivated
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Replacement Wheel
Mfr. No. GST 150/20K
Extended Lead
No
Caster Frame Material
Steel
Includes Thread Guards
No
Accessories
Optional: RI-LS-16 (Directional Lock)
Load Capacity
1210 lb
Number of Mounting Holes
4
Tread Shape
Standard
Wheel Core Material
Cast Iron
Resistant To
High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
ESD Conductive
No
Load Rating Range
Heavy-Duty
Series
LS Series
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Cast Iron/Polyurethane
Wheel Hardness Rating
75 Shore A
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel With Brake
