  11. Swivel Plate Caster, PU, 8", 1540 lb., Caster Wheel/Tread Material: Aluminum/Polyurethane Elastomer

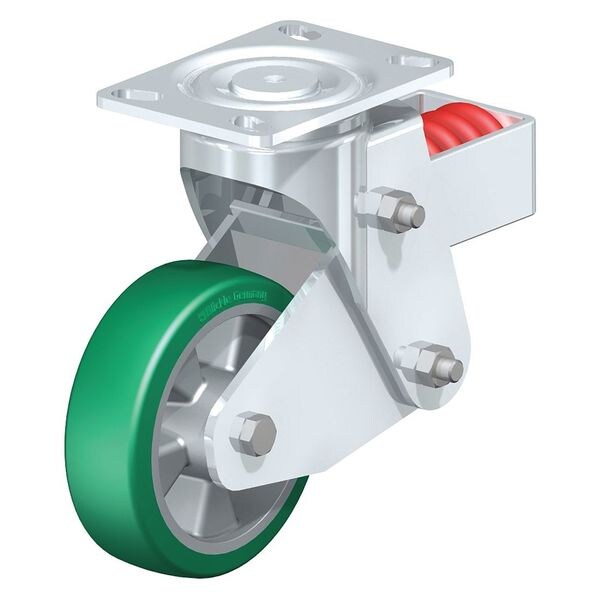

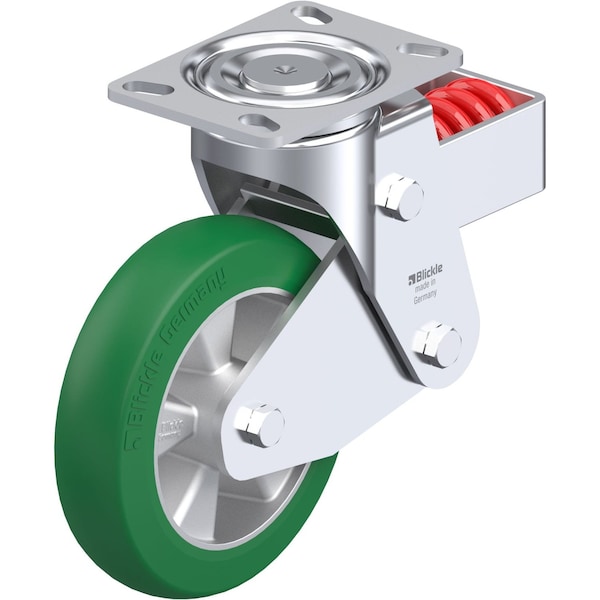

Blickle Swivel Plate Caster, PU, 8", 1540 lb., Caster Wheel/Tread Material: Aluminum/Polyurethane Elastomer LHF-ALST 200K-16-CO - main

Swivel Plate Caster, PU, 8", 1540 lb., Caster Wheel/Tread Material: Aluminum/Polyurethane Elastomer

  • Mfr # LHF-ALST 200K-16-CO

  • Zoro # G0895881

product price: $341.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Caster Brake Type
No Brake Included
Wheel Dia.
8in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LHF-ALST 200K-16-CO
Zoro #
G0895881
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8in
Wheel Width
2in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Overall Height
10.43in
Swivel Radius
6-9/16 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Caster Brake Type
No Brake Included
Load Rating
1540 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Extra Crowned
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Tread Color
Green
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Includes
Steel Spring Shock Absorbing, Extra Crowned Tread
Tread
Crowned
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. ALST 200/20K-CO
Extended Lead
No
Includes Thread Guards
No
Wheel Core Material
Aluminum
Max. Spring Deflection
1 in
Swivel Raceway Type
Double Ball
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
680 lb
Series
LHF Series
Load Rating Range
Heavy-Duty
ESD Conductive
No
Maximum Compression Force
1255 lb
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
