  11. Swivel Plate Caster, PU, 8", 1760 lb., Caster Load Rating Range: Heavy-Duty

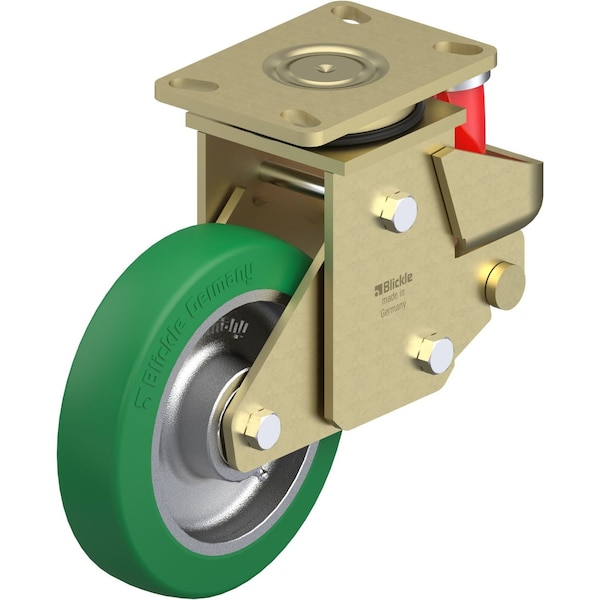

Blickle Swivel Plate Caster, PU, 8", 1760 lb., Caster Load Rating Range: Heavy-Duty LSFE-GST 200K-16 - main

Swivel Plate Caster, PU, 8", 1760 lb., Caster Load Rating Range: Heavy-Duty

  • Mfr # LSFE-GST 200K-16

  • Zoro # G0896222

product price: $368.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Caster Brake Type
No Brake Included
Wheel Dia.
8in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSFE-GST 200K-16
Zoro #
G0896222
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8in
Wheel Width
2in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in
Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Overall Height
10.43in
Swivel Radius
8 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Caster Brake Type
No Brake Included
Load Rating
1760 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Tread Color
Green
Replacement Wheel
Mfr. No. GST 200/20K
Tread
Standard
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Standards
RoHS, ICWM
Frame Finish
Zinc Plated, Yellow Passivated
Extended Lead
No
Max. Spring Deflection
1 in
Load Capacity
610 lb
Includes Thread Guards
No
Wheel Core Material
Cast Iron
ESD Conductive
No
Series
LSFE Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Rating Range
Heavy-Duty
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Operating Temperature Range
-15 Degrees To 160 Degrees F
Maximum Compression Force
1100 lb

Description

Swivel
