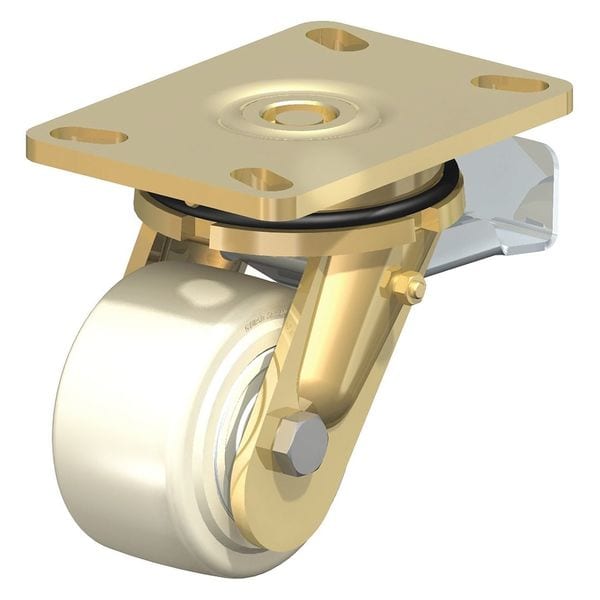

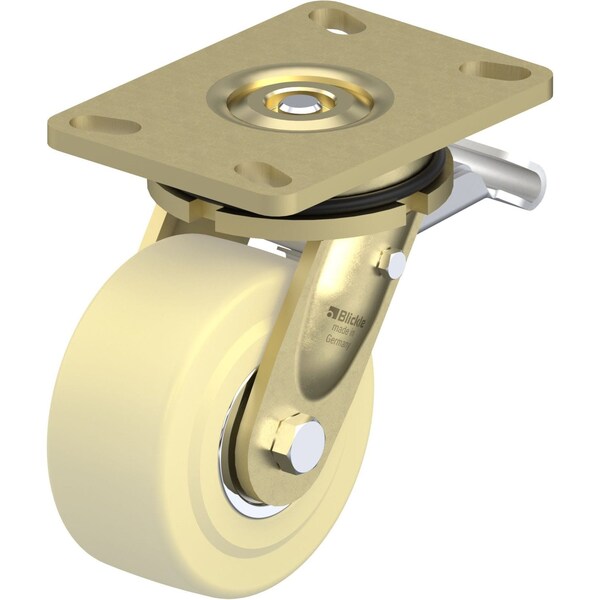

Blickle Swivel Plate Caster, Wht Nylon, 5", Brake, Caster Load Rating Range: Heavy-Duty LS-GSPO 125K-16-ST - main

Swivel Plate Caster, Wht Nylon, 5", Brake, Caster Load Rating Range: Heavy-Duty

  • Mfr # LS-GSPO 125K-16-ST

  • Zoro # G0895498

product price:  $280.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Stem Dia.
No Stem
Load Rating
2750 lb.
Overall Height
6.69in
Wheel Width
2-1/8in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LS-GSPO 125K-16-ST
Zoro #
G0895498
UPC #
-
Country of Origin
Germany

Dimensions

Stem Dia.
No Stem
Overall Height
6.69in
Wheel Width
2-1/8in
Wheel Dia.
5in
Mounting Bolt Dia.
1/2 in
Swivel Radius
4-1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Caster Sub-Type
Swivel
Load Rating
2750 lb.
Item
Swivel Caster With Brake
Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Caster Brake Included
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Brake Type
Stop Top Brake (Total Lock)
Tread
Standard
Includes
Stop-Top Total-Lock Brake
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. GSPO 125/25K
Tread Color
Natural Beige
Caster Mounting Type
Plate
Frame Finish
Zinc Plated, Yellow Passivated
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
System of Measurement
Inch
Core Color
White
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Extended Lead
No
Caster Frame Material
Steel
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Load Rating Range
Heavy-Duty
Tread Shape
Standard
Series
LS Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel Core Material
Nylon
Load Capacity
2750 lb
ESD Conductive
No
Accessories
Optional: RI-LS-16 (Directional Lock)
Wheel/Tread Material
Nylon
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
80 Shore D
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
