  6. Swivel Plate Caster, PU, 8", 1760 lb., Caster Wheel/Tread Material: Aluminum/Polyurethane Elastomer

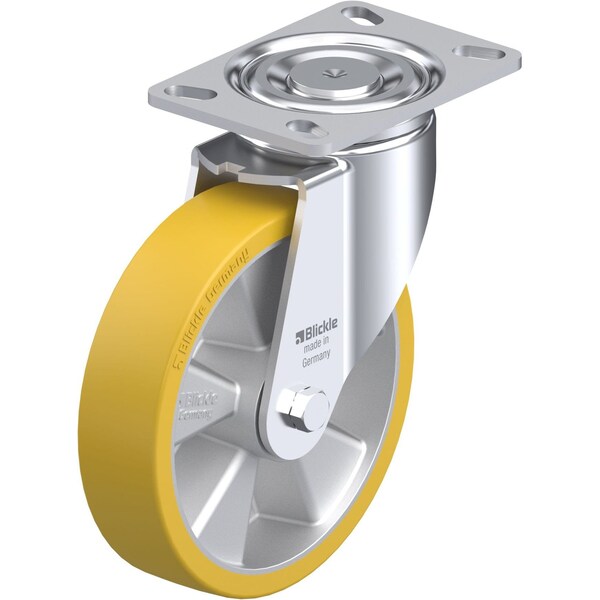

Blickle Swivel Plate Caster, PU, 8", 1760 lb., Caster Wheel/Tread Material: Aluminum/Polyurethane Elastomer LH-ALTH 200K-16 - main

Swivel Plate Caster, PU, 8", 1760 lb., Caster Wheel/Tread Material: Aluminum/Polyurethane Elastomer

  • Mfr # LH-ALTH 200K-16

  • Zoro # G0894588

product price:  $136.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
2in
Stem Dia.
No Stem
Wheel Dia.
8in
Caster Brake Included
No
Overall Height
9.65in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LH-ALTH 200K-16
Zoro #
G0894588
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
2in
Stem Dia.
No Stem
Wheel Dia.
8in
Overall Height
9.65in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-3/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4-1/2 in x 6-1/4 in

Details

Caster Brake Included
No
Caster Sub-Type
Swivel
Item
Swivel Caster
Caster Stem Type
No Stem/Plate Included
Load Rating
1760 lb.
Number of Wheels
1
Caster Brake Type
No Brake Included
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
System of Measurement
Inch
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Tread Color
Light Brown
Core Color
Silver
Tread
Standard
Caster Mounting Type
Plate
Non-Marking
Yes
Replacement Wheel
Mfr. No. ALTH 200/20K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Extended Lead
No
Caster Frame Material
Steel
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Accessories
Optional: RI-05.16 (Directional Lock)
Load Rating Range
Heavy-Duty
Series
LH Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1760 lb
Includes Thread Guards
No
ESD Conductive
No
Wheel Core Material
Aluminum
Tread Shape
Standard
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
