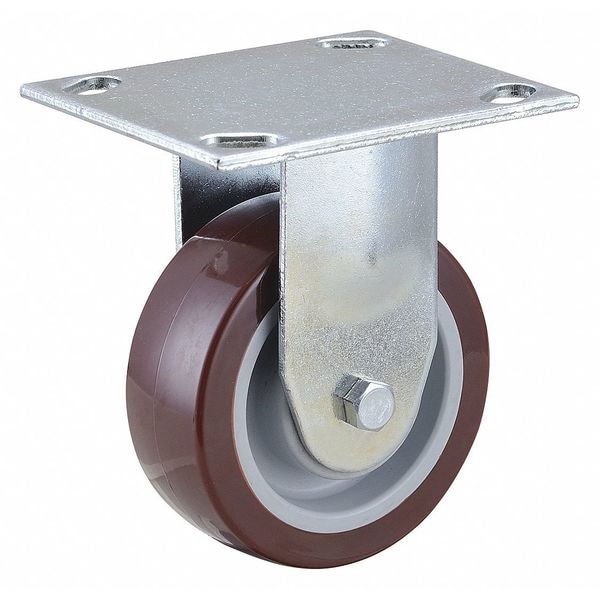

Zoro Select Rgd NSF-Listed Plate Cstr, Polyurethane, 4 in, 375 lb. 33H914 - main

Rgd NSF-Listed Plate Cstr, Polyurethane, 4 in, 375 lb.

  • Mfr # 33H914

  • Zoro # G4806365

product price:  $15.65
/ea

Key Features

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Thread Guards
No
Core Color
Gray
Wheel Dia.
4 in
Replacement Wheel
IX04100106G
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
33H914
Zoro #
G4806365
UPC #
190735901151
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/2 in
Mounting Bolt Dia.
5/16 in
Overall Height
5-3/16in
Mounting Plate Size
3 3/4 in x 4 1/2 in
Mounting Height
5 3/16 in
Mounting Plate Thickness
5/32in

Details

Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Thread Guards
No
Core Color
Gray
Replacement Wheel
IX04100106G
Caster Frame Material
Steel
Extended Lead
No
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Brake Included
No
Caster Temp. Range Available
Yes
Standards
ANF, ANSI, ANSI ICWM, NSF
Item
Plate Caster
Number of Wheels
1
Frame Finish
Zinc Plated
Load Rating
375 lb
Non-Marking
Yes
Caster Sub-Type
Rigid
Inside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Maroon
Caster Plate Hole Pattern
B
Load Rating Range
300 to 999 lb
Caster Brake Type
No Brake
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Wheel Core Material
Polyolefin
Swivel Construction
Kingpinless
Includes Thread Guards
No
Tread Shape
Standard
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
Load Capacity - Maximum
375 lb
Wheel Hardness Rating
95 Shore A
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 375 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard

Documents & Resources

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
