Blickle

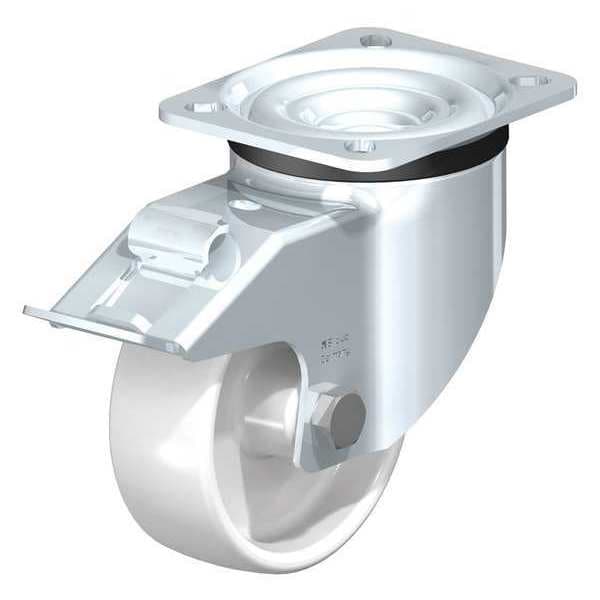

Swivl Plte Castr, White Nyln, 4", Brake


product price: $34.69
/ea

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel/Tread Material Medium Heavy Duty Nylon
  • Number of Wheels 1
See all product information

Product Information

Dimensions

Overall Height 130 mm
Wheel Dia. 100 mm
Wheel Width 37 mm
Mounting Bolt Dia. M8
Swivel Radius 95 mm
Caster Plate Size 85 mm x 100 mm

Details

Caster Brake Included Yes
Caster Load Rating Range Medium Duty
Caster Sub-Type Swivel
Caster Wheel/Tread Material Medium Heavy Duty Nylon
Number of Wheels 1
Item Swivel Plate Caster With Brake
Frame Finish Zinc Plated
Outside Bolt Hole Spacing 60 mm x 80 mm
Caster Swivel Lock Type Total-Lock
Caster Temp. Range -25 Degrees To 80 Degrees C
Caster Frame Material Steel
Inside Bolt Hole Spacing 60 mm x 80 mm
Includes Stop-Fix Total-Lock Brake
Core Color White
Standards RoHS, ICWM
Caster Plate Thickness 3.5 mm
Extended Lead No
Caster Wheel Bearings Plain
Application Retail, Industrial, Commercial, Corrosion Resistance
Caster Raceway Double Ball
Replacement Wheel Mfr. No. PO 100/15G
Non-Marking Yes
Caster Product Group Swivel Caster With Brake
System of Measurement Metric
Tread Shape Standard
Number of Mounting Holes 4
Tread Color White
ESD Conductive No
Load Capacity 280 kg
Series LK Series
Caster Mounting Type Plate
Wheel Core Material Nylon
Wheel/Tread Hardness 70 Shore D
Resistant To High Chemical Resistance To Many Aggressive Substances
Swivel Raceway Type Double Ball
Includes Thread Guards No
Tread Standard
Caster Break Type Stop Fix Brake (Total Lock)

Description

Swivel With Brake
