Blickle Swivel Plate Caster, PU, 8", Brake LH-GTH 200K-16-FI - main
Shop BLICKLE

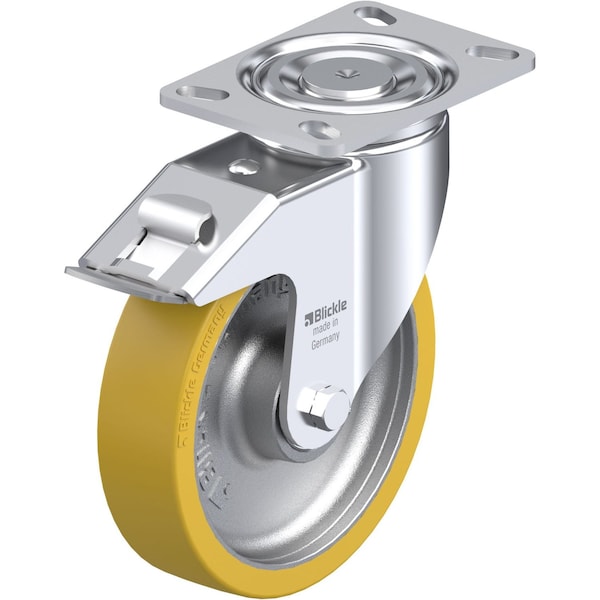

Swivel Plate Caster, PU, 8", Brake

  • Mfr # LH-GTH 200K-16-FI

  • Zoro # G0894323

product price:  $208.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron/Polyurethane
Caster Brake Type
Stop Fix Brake (Total Lock)
Wheel Dia.
8in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LH-GTH 200K-16-FI
Zoro #
G0894323
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8in
Wheel Width
2in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Overall Height
9.65in
Swivel Radius
6-3/4 in

Details

Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron/Polyurethane
Caster Brake Type
Stop Fix Brake (Total Lock)
Load Rating
2000 lb.
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. GTH 200/20K
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Includes
Stop-Fix Total-Lock Brake
Tread
Standard
Tread Color
Light Brown
Extended Lead
No
Wheel Core Material
Cast Iron
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Accessories
Optional: RI-05.16 (Directional Lock)
Load Capacity
2000 lb
Load Rating Range
Heavy-Duty
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
LH Series
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Plate Caster
